UC212-207D1 Series-

Designations

UC212-207D1

Included products

Bearing

UC212-207D1

Bearing

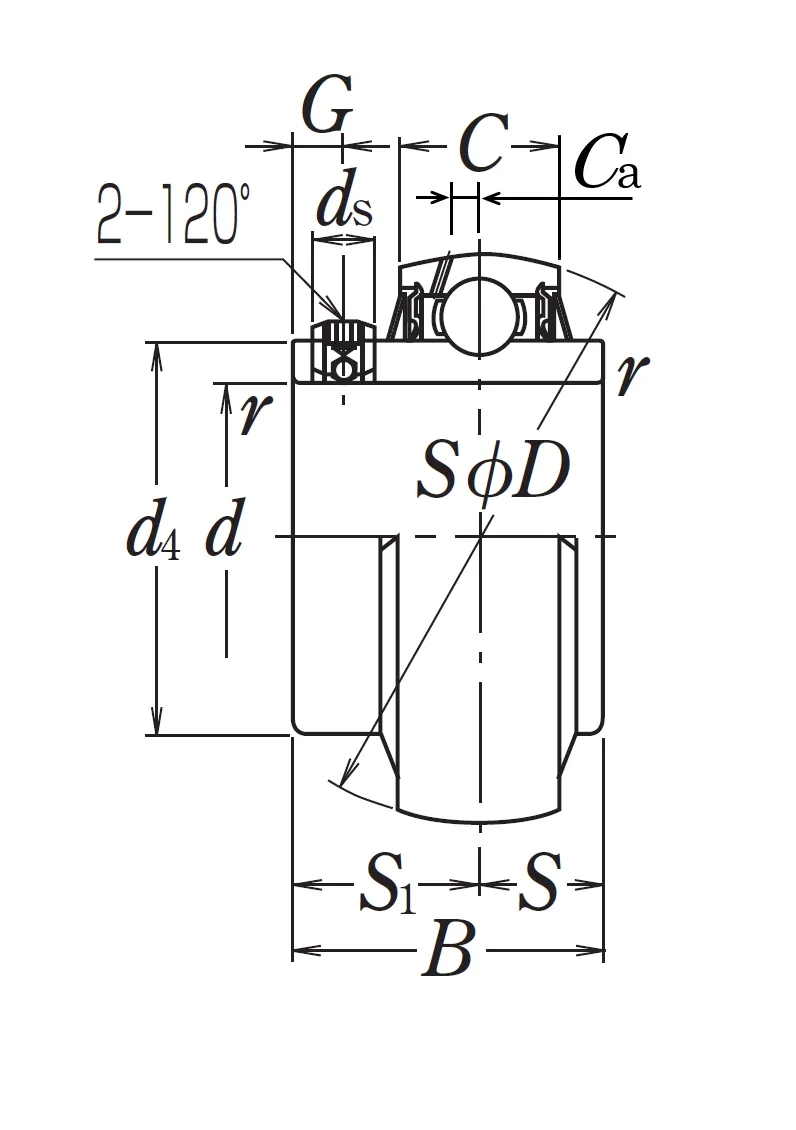

Nominal Dimensions

d	61.912	mm	Bore diameter
D	110	mm	Outside diameter
B,B4	65.1	mm	Width of inner ring
C	27	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
S1	39.7	mm	Distance from locking device side face to raceway centre
G	10	mm	Distance face to thread centre
ds	3／8-27UNF		Set screw
Ca	7.3	mm	Distance from oil hole centre to raceway centre
d4	77	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

Mass approx.

1.37

kg
