UEL211D1 Series-

Designations

UEL211D1

Included products

Bearing

UEL211D1

Bearing

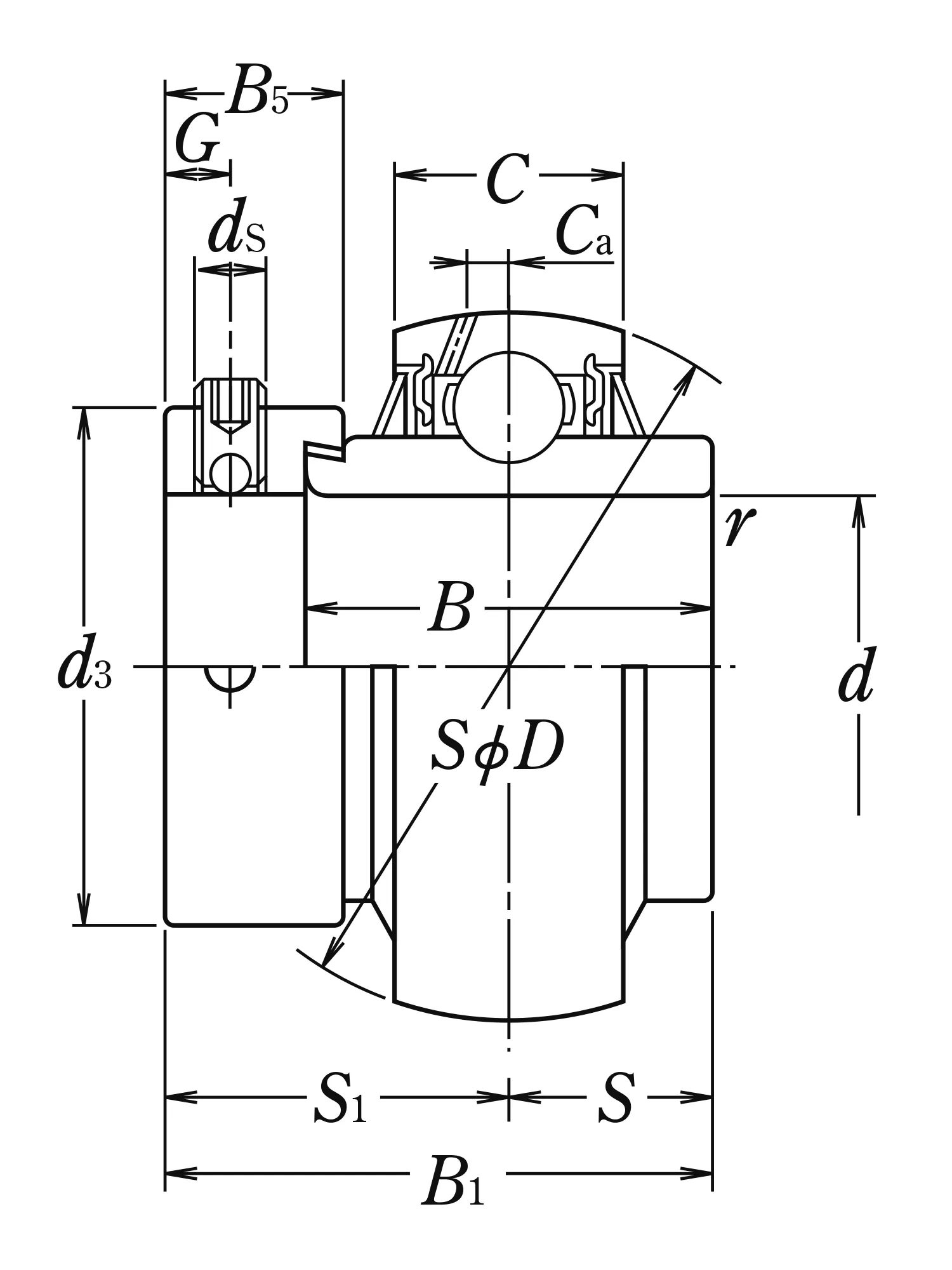

Nominal Dimensions

d	55	mm	Bore diameter
D	100	mm	Outside diameter
B1	71.4	mm	Overall bearing width
B,B4	55.5	mm	Width of inner ring
C	25	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
S1	43.65	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
Ca	6.5	mm	Distance from oil hole centre to raceway centre
d3	76	mm	Outside diameter of locking collar
B5	20.7	mm	Width of locking collar

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

Mass approx.

1.32

kg
