UCS310 Series-

Designations

UCS310

Included products

Bearing

UCS310

Bearing

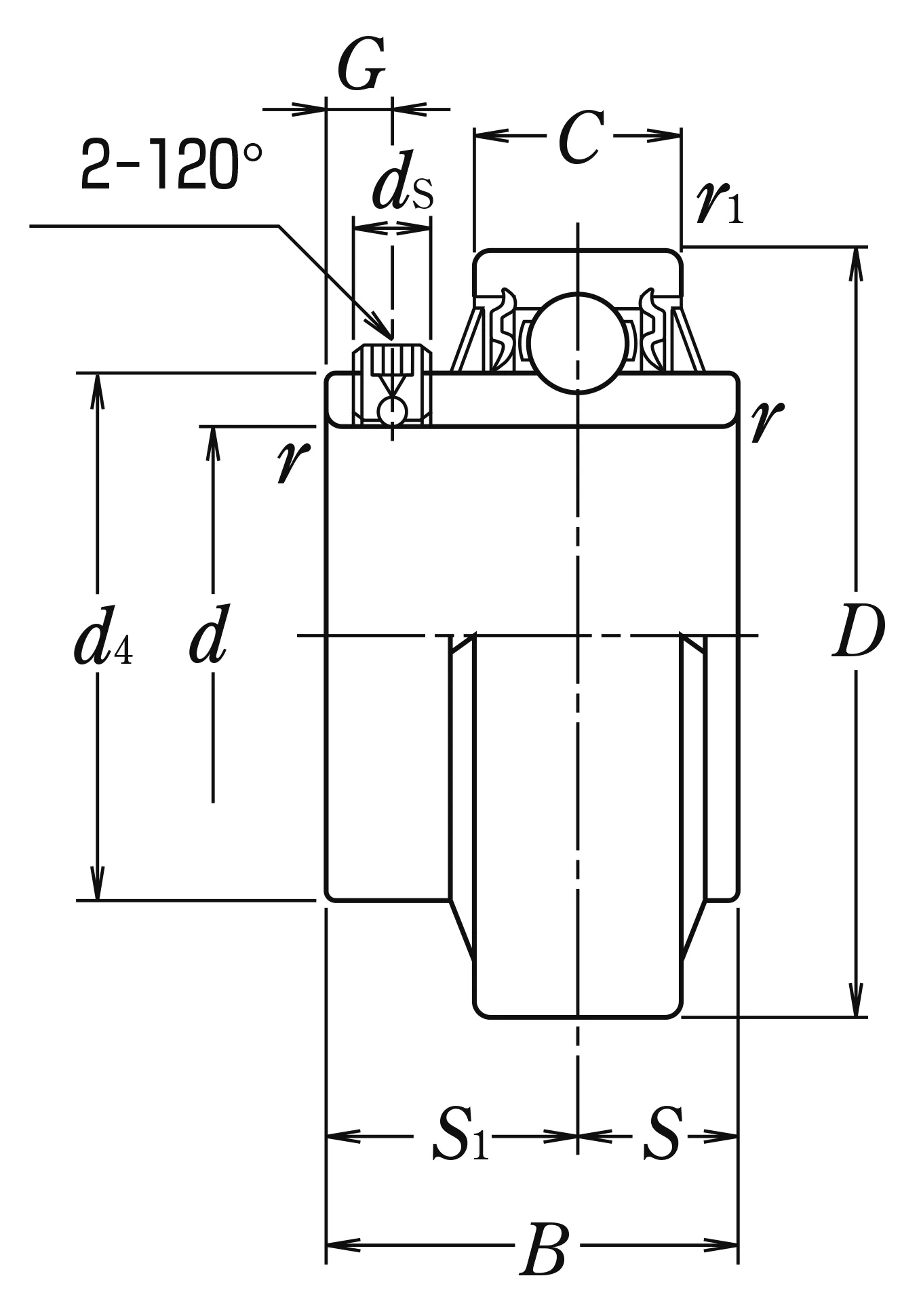

Nominal Dimensions

d	50	mm	Bore diameter
D	110	mm	Outside diameter
B,B4	61	mm	Width of inner ring
C	32	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	39	mm	Distance from locking device side face to raceway centre
G	12	mm	Distance face to thread centre
ds	M12×1.5		Set screw
d4	70.6	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

Mass approx.

1.72

kg

Mass approx.
