UEL310D1 Series-

Designations

UEL310D1

Included products

Bearing

UEL310D1

Bearing

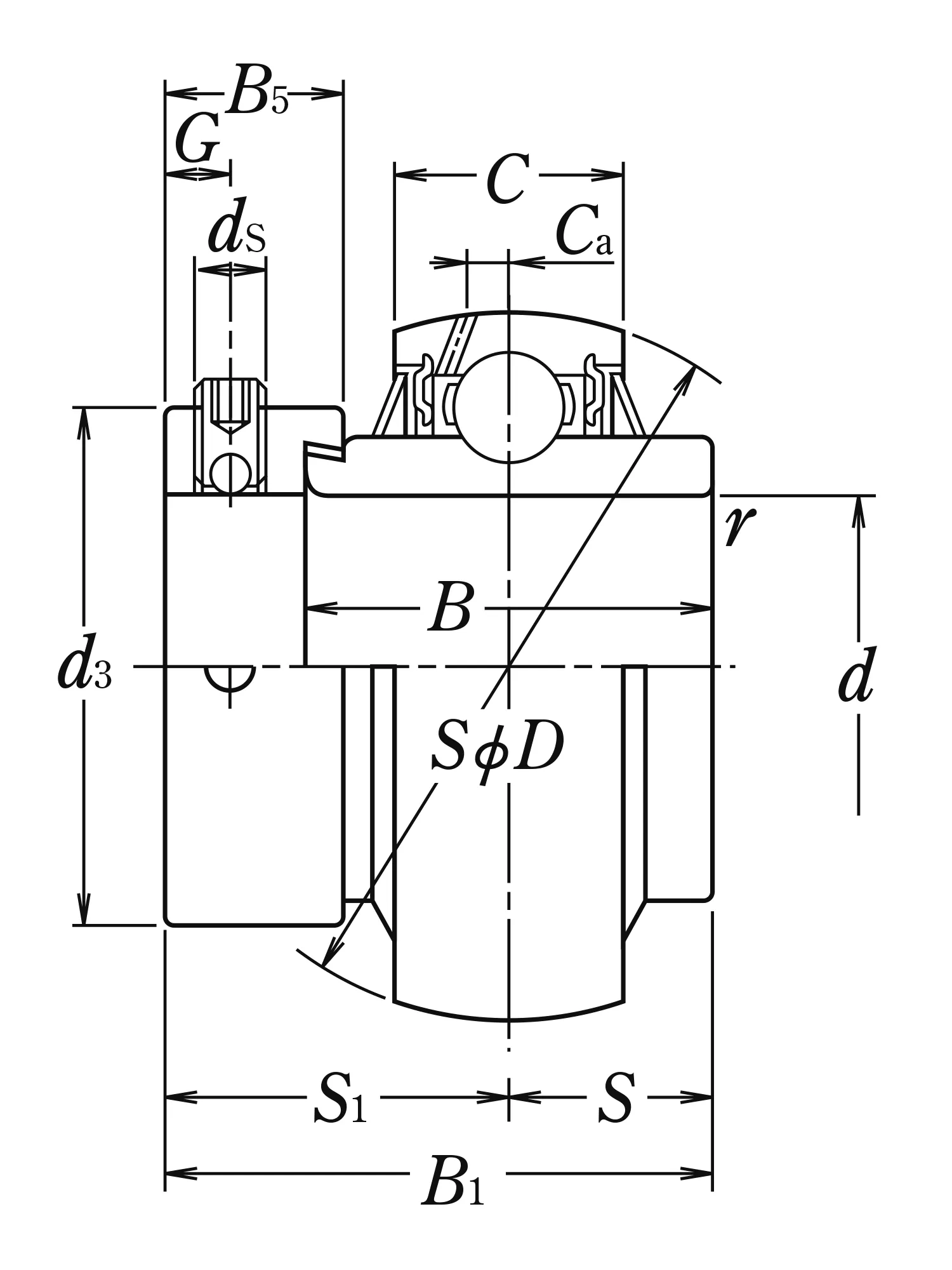

Nominal Dimensions

d	50	mm	Bore diameter
D	110	mm	Outside diameter
B1	66.6	mm	Overall bearing width
B,B4	49.2	mm	Width of inner ring
C	32	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
S1	42	mm	Distance from locking device side face to raceway centre
G	8.7	mm	Distance face to thread centre
ds	M10×1.25		Set screw
Ca	7.9	mm	Distance from oil hole centre to raceway centre
d3	76.2	mm	Outside diameter of locking collar
B5	22.2	mm	Width of locking collar

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

Mass approx.

1.84

kg
