UCS210LN Series-

Designations

UCS210LN

Included products

Bearing

UCS210LN

Bearing

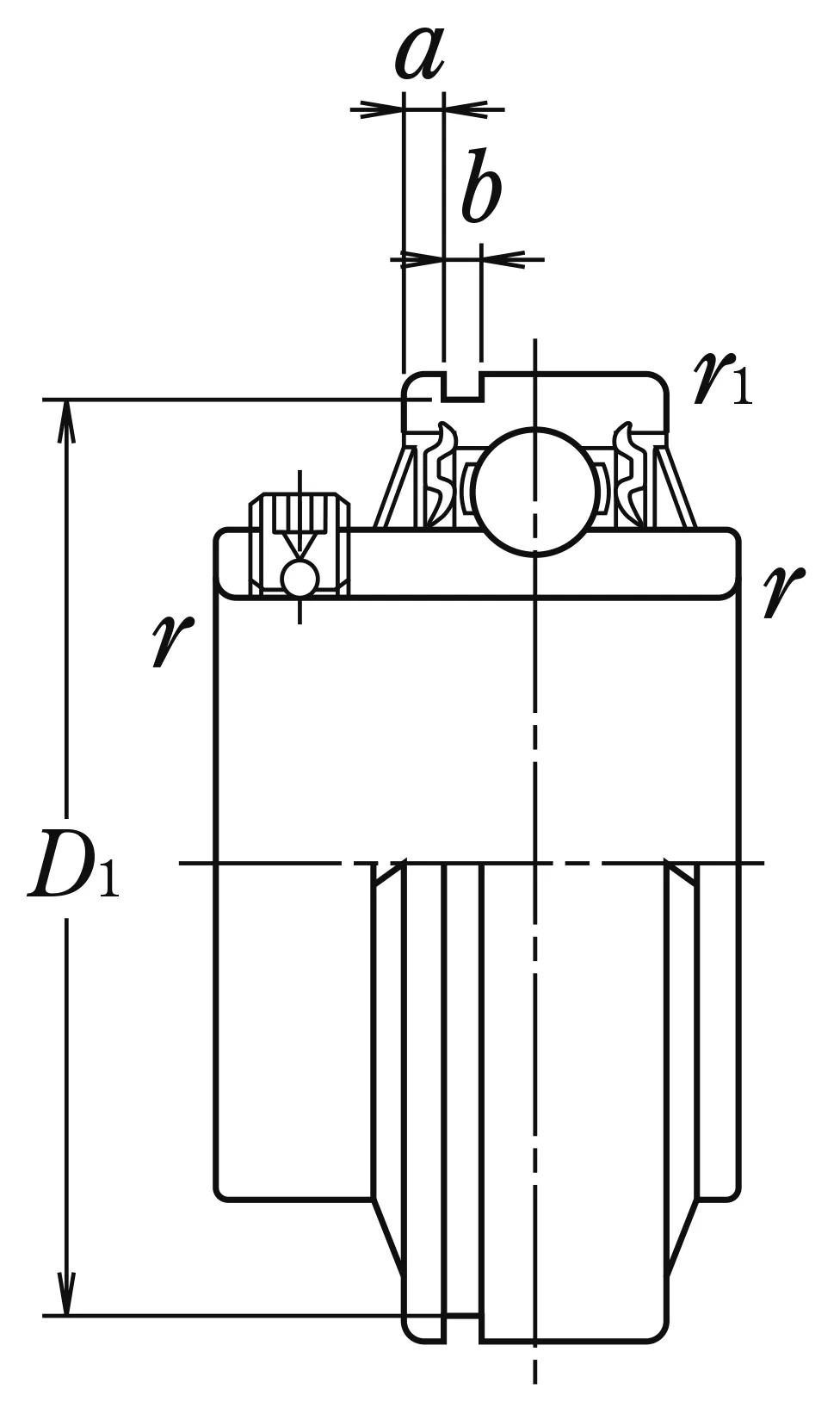

Nominal Dimensions

d	50	mm	Bore diameter
D	90	mm	Outside diameter
B,B4	51.6	mm	Width of inner ring
C	24	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	32.6	mm	Distance from locking device side face to raceway centre
G	9	mm	Distance face to thread centre
ds	M 8×1		Set screw
d4	62.4	mm	Outside diameter of inner ring
D1	86.79	mm	Diameter of snap ring groove
a	3.7	mm	Distance outer ring from side face to snap ring groove
b	2.85	mm	Width of snap ring groove

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

Mass approx.

0.78

kg
