UELS309 Series-

Designations

UELS309

Included products

Bearing

UELS309

Bearing

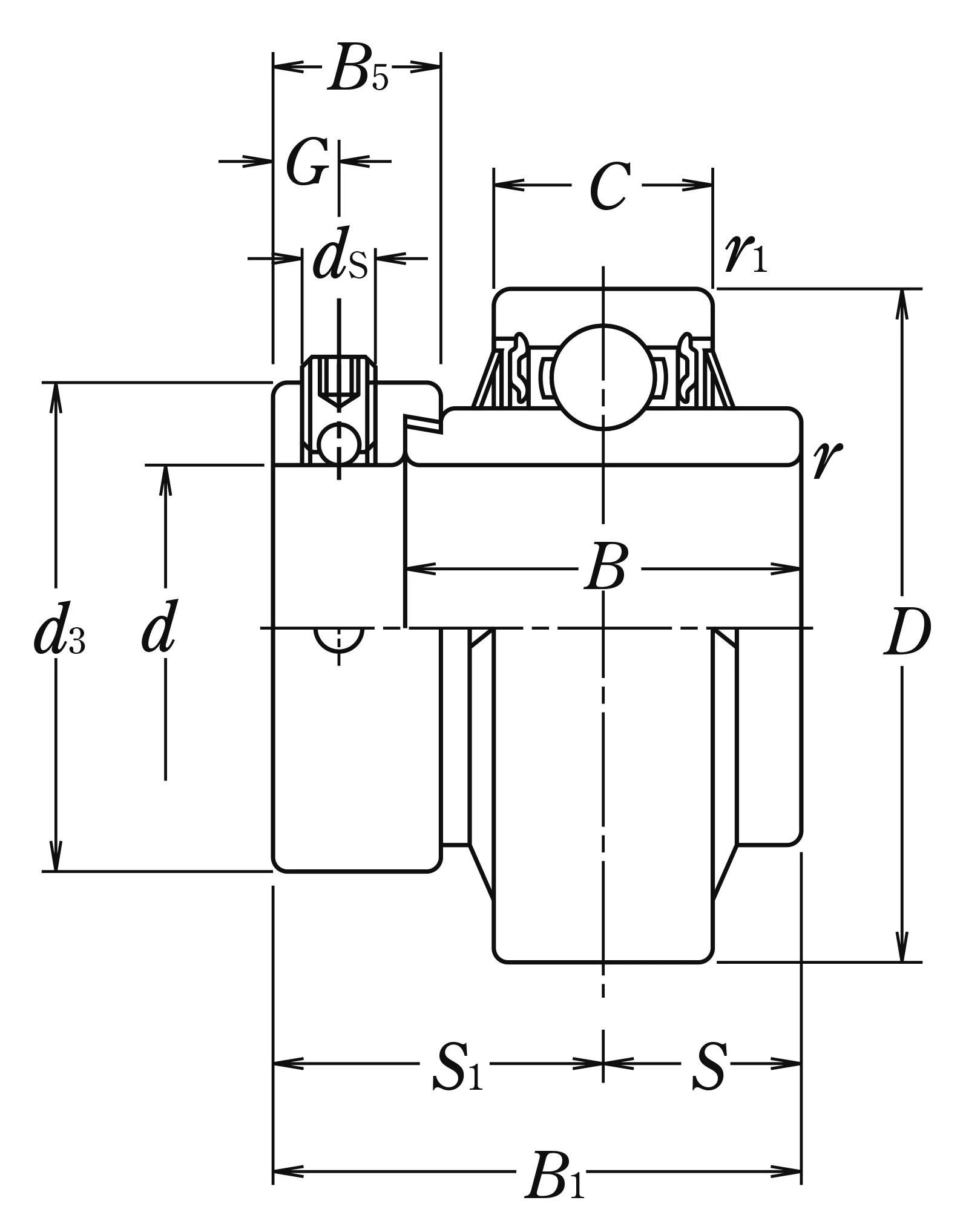

Nominal Dimensions

d	45	mm	Bore diameter
D	100	mm	Outside diameter
B1	58.7	mm	Overall bearing width
B,B4	42.9	mm	Width of inner ring
C	29	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	38.9	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	70	mm	Outside diameter of locking collar
B5	20.6	mm	Width of locking collar

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

Mass approx.

1.5

kg
