UKS309 Series-

Designations

UKS309

Included products

Bearing

UKS309

Bearing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

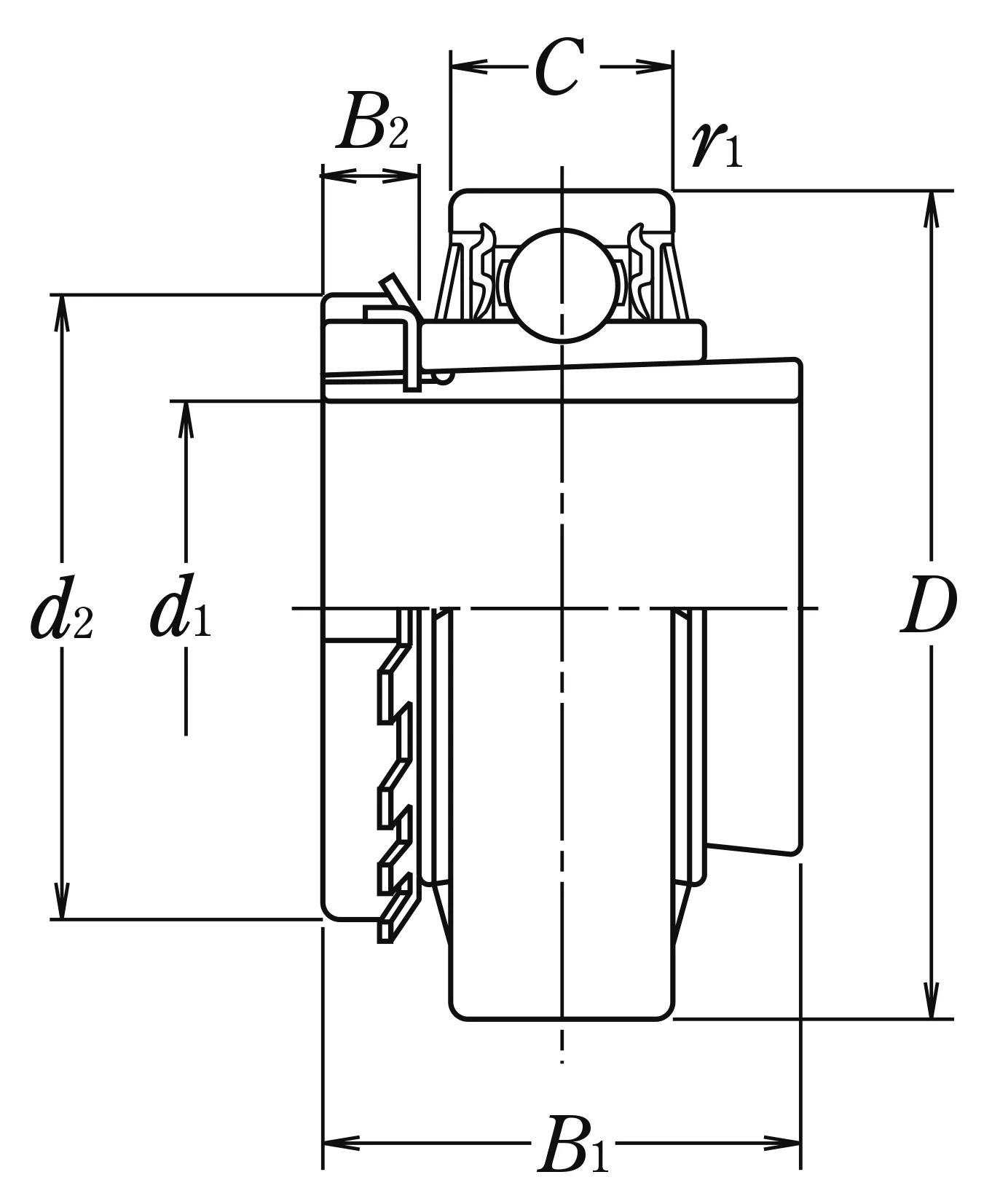

Nominal Dimensions

d	45	mm	Bore diameter
D	100	mm	Outside diameter
B1	50	mm	Overall bearing width
d1	40	mm	Sleeve bore diameter
d2	65	mm	Outside diameter lock nut
B,B4	37	mm	Width of inner ring
B2	11	mm	Width lock nut including lock washer
C	29	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
d4	63.5	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

Mass approx.

1.43

kg

Mass approx.
