UELS209LN Series-

Designations

UELS209LN

Included products

Bearing

UELS209LN

Bearing

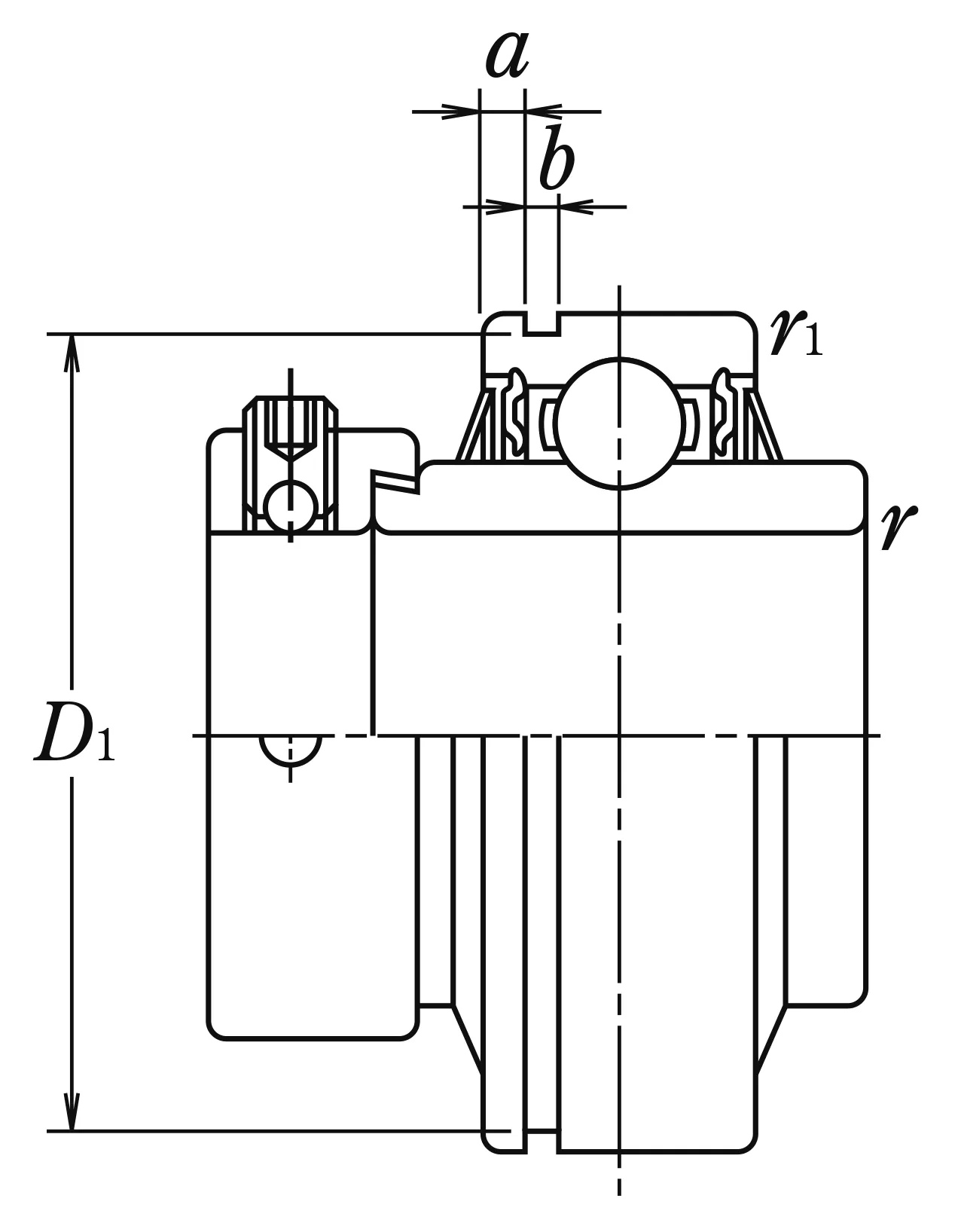

Nominal Dimensions

d	45	mm	Bore diameter
D	85	mm	Outside diameter
B1	56.3	mm	Overall bearing width
B,B4	42.8	mm	Width of inner ring
C	22	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	34.9	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	63.5	mm	Outside diameter of locking collar
D1	81.81	mm	Diameter of snap ring groove
B5	18.3	mm	Width of locking collar
a	3.5	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

Mass approx.

0.85

kg
