UK209D1 Series-

Designations

UK209D1

Included products

Bearing

UK209D1

Bearing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

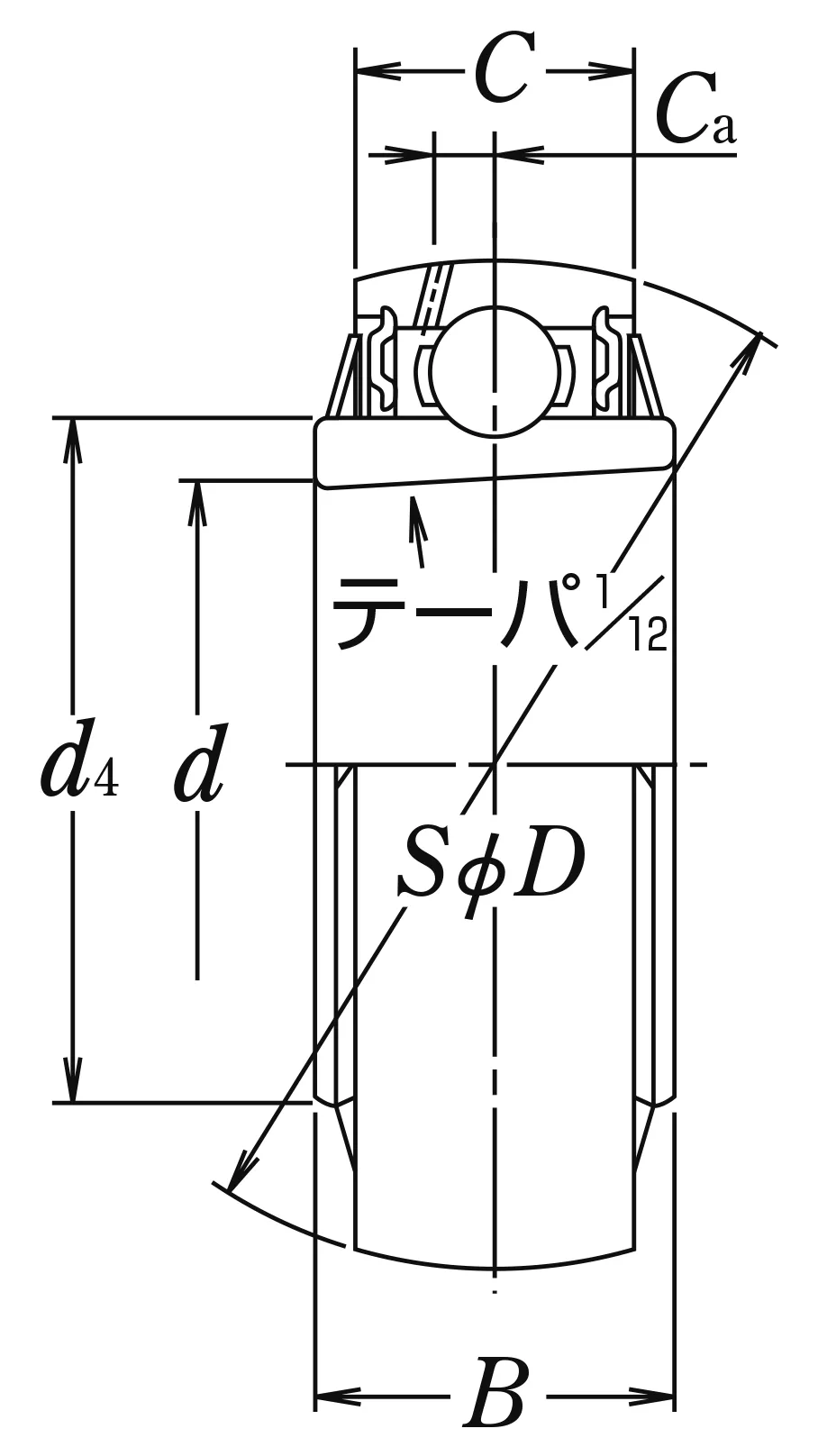

Nominal Dimensions

d	45	mm	Bore diameter
D	85	mm	Outside diameter
B1	50	mm	Overall bearing width
d1	40	mm	Sleeve bore diameter
d2	65	mm	Outside diameter lock nut
B,B4	31	mm	Width of inner ring
B2	11	mm	Width lock nut including lock washer
C	22	mm	Outer ring width
Ca	6.1	mm	Distance from oil hole centre to raceway centre
d4	57.5	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

Mass approx.

0.8

kg

Mass approx.
