UELS308 Series-

Designations

UELS308

Included products

Bearing

UELS308

Bearing

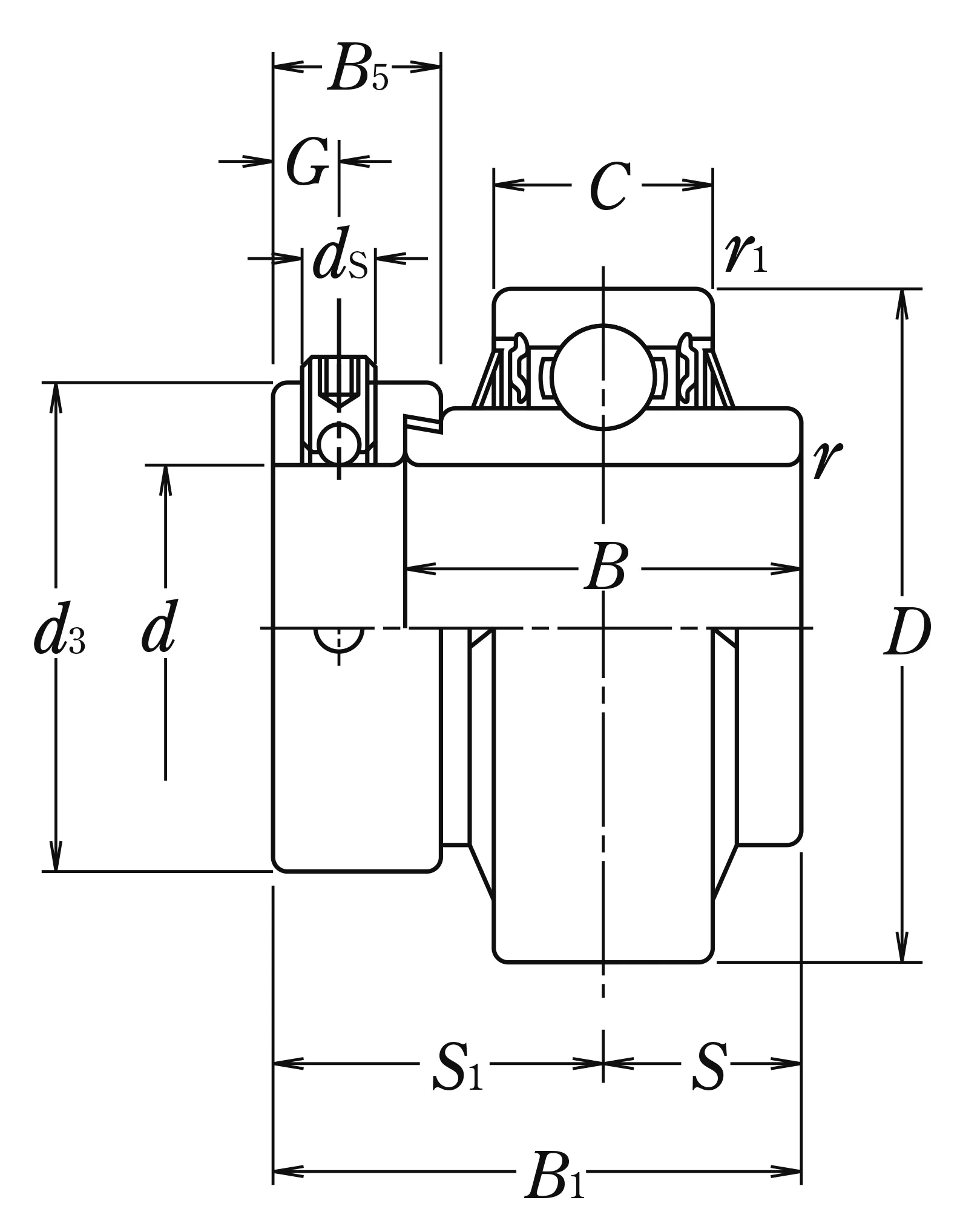

Nominal Dimensions

d	40	mm	Bore diameter
D	90	mm	Outside diameter
B1	57.1	mm	Overall bearing width
B,B4	41.3	mm	Width of inner ring
C	27	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	37.3	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	63.5	mm	Outside diameter of locking collar
B5	20.6	mm	Width of locking collar

Basic Load Ratings

Cr	40.5	kN	Basic dynamic load rating
C0r	24	kN	Basic static load rating

Mass

Mass approx.

1.12

kg

Mass approx.
