UKS208LN Series-

Designations

UKS208LN

Included products

Bearing

UKS208LN

Bearing

Associated products

Adapter sleeve

H2308X

Adapter sleeve

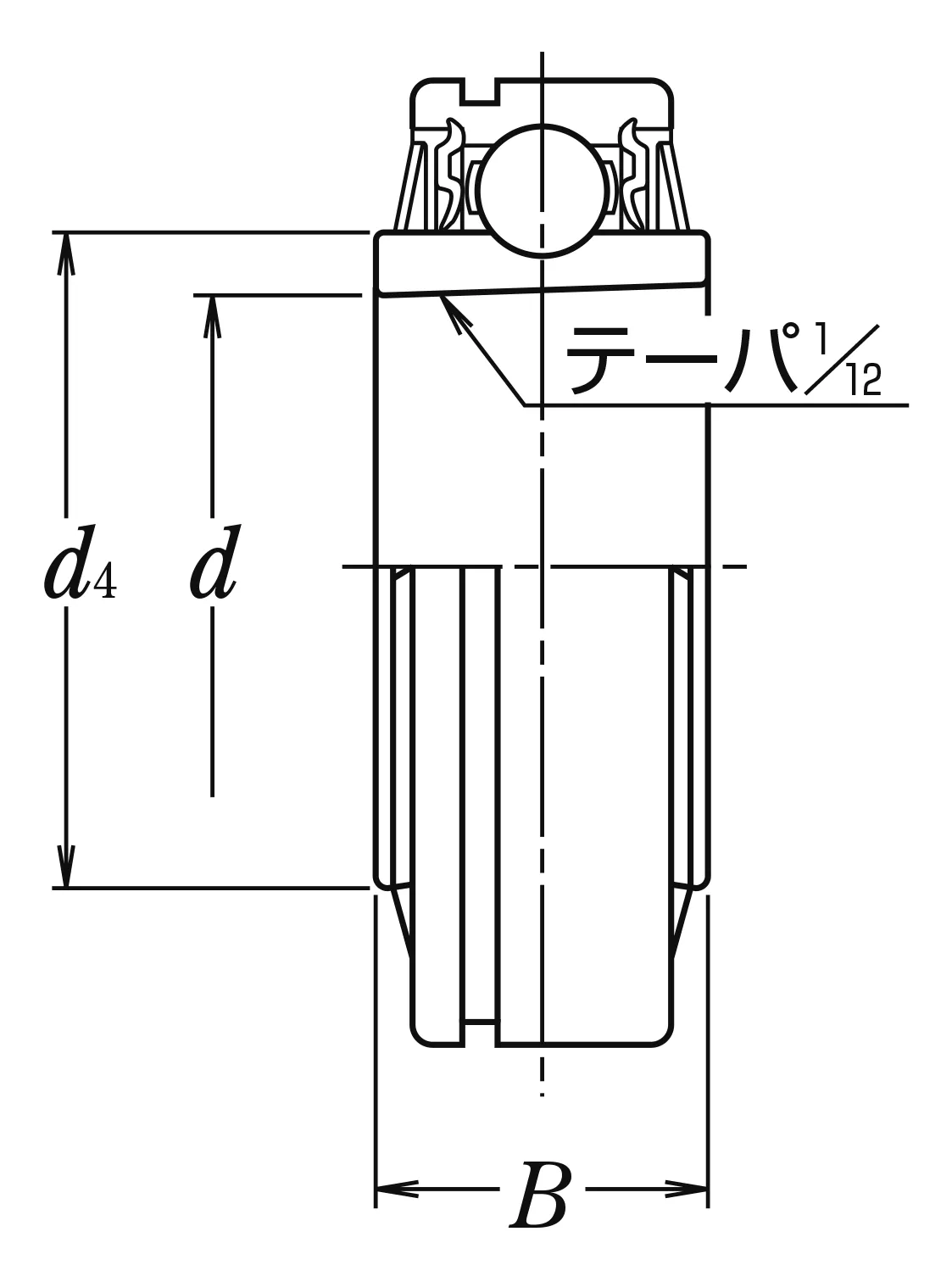

Nominal Dimensions

d	40	mm	Bore diameter
D	80	mm	Outside diameter
B1	46	mm	Overall bearing width
d1	35	mm	Sleeve bore diameter
d2	58	mm	Outside diameter lock nut
B,B4	31	mm	Width of inner ring
B2	10	mm	Width lock nut including lock washer
C	21	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
d4	53	mm	Outside diameter of inner ring
D1	76.81	mm	Diameter of snap ring groove
a	3.4	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

Mass approx.

0.74

kg

Mass approx.
