UCS307 Series-

Designations

UCS307

Included products

Bearing

UCS307

Bearing

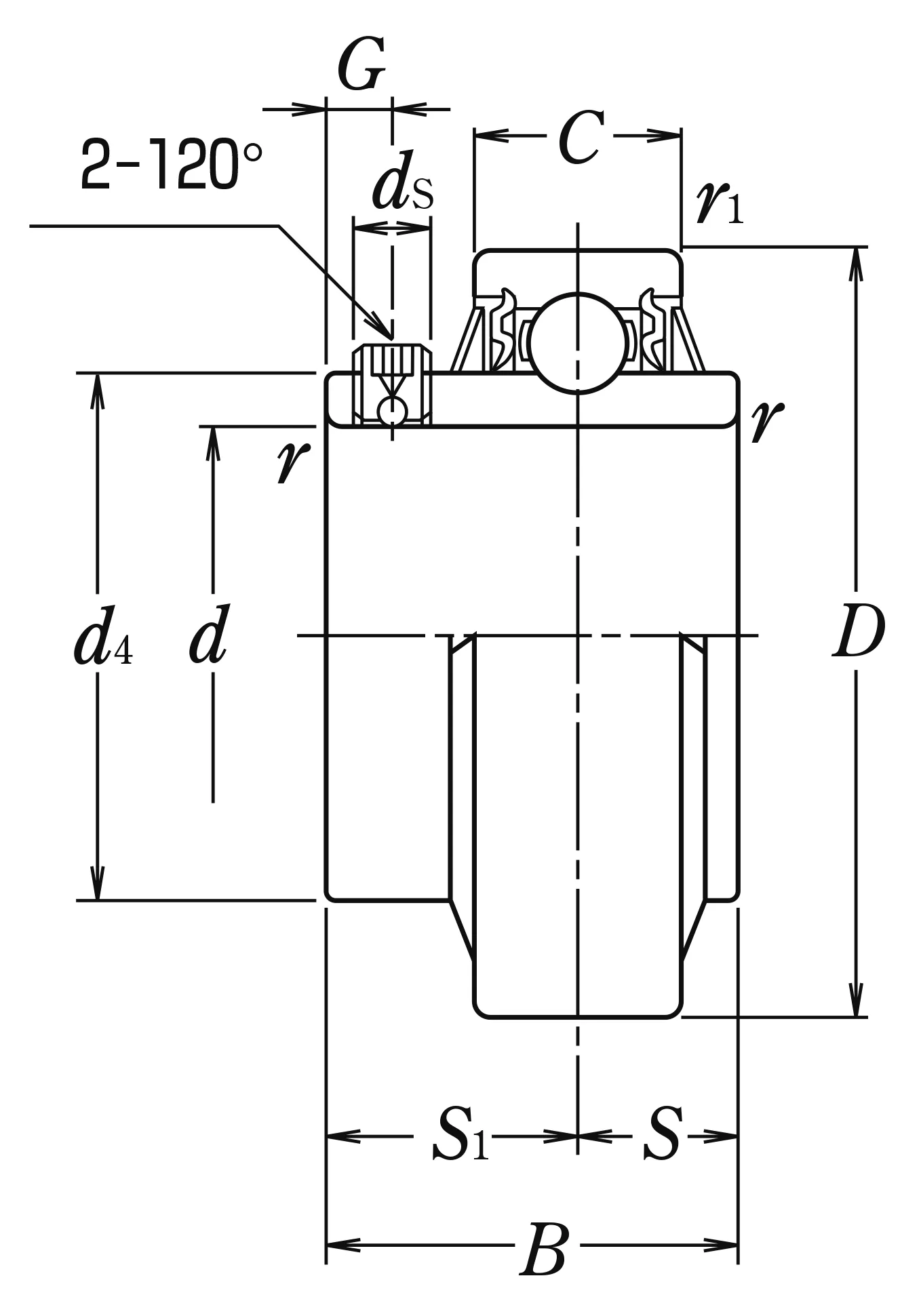

Nominal Dimensions

d	35	mm	Bore diameter
D	80	mm	Outside diameter
B,B4	48	mm	Width of inner ring
C	25	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	29	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M 8×1		Set screw
d4	49.4	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	33.5	kN	Basic dynamic load rating
C0r	19.1	kN	Basic static load rating

Mass

Mass approx.

0.74

kg
