UELS307 Series-

Designations

UELS307

Included products

Bearing

UELS307

Bearing

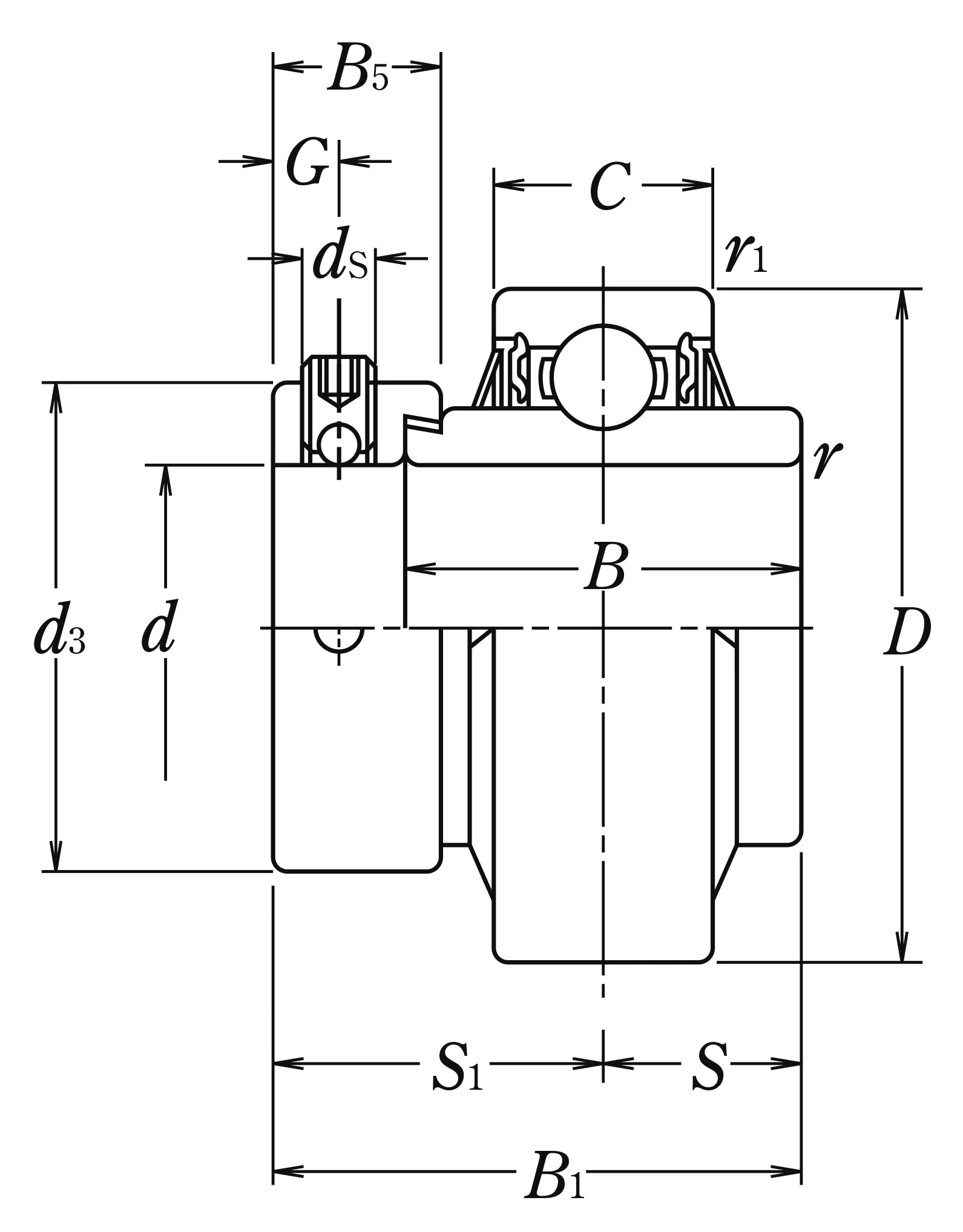

Nominal Dimensions

d	35	mm	Bore diameter
D	80	mm	Outside diameter
B1	51.6	mm	Overall bearing width
B,B4	38.1	mm	Width of inner ring
C	25	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	33.3	mm	Distance from locking device side face to raceway centre
G	6.7	mm	Distance face to thread centre
ds	M 8×1		Set screw
d3	55	mm	Outside diameter of locking collar
B5	17.5	mm	Width of locking collar

Basic Load Ratings

Cr	33.5	kN	Basic dynamic load rating
C0r	19.1	kN	Basic static load rating

Mass

Mass approx.

0.83

kg

Mass approx.
