UELS207LN Series-

Designations

UELS207LN

Included products

Bearing

UELS207LN

Bearing

Nominal Dimensions

d	35	mm	Bore diameter
D	72	mm	Outside diameter
B1	51.1	mm	Overall bearing width
B,B4	37.6	mm	Width of inner ring
C	20	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	32.3	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	55.5	mm	Outside diameter of locking collar

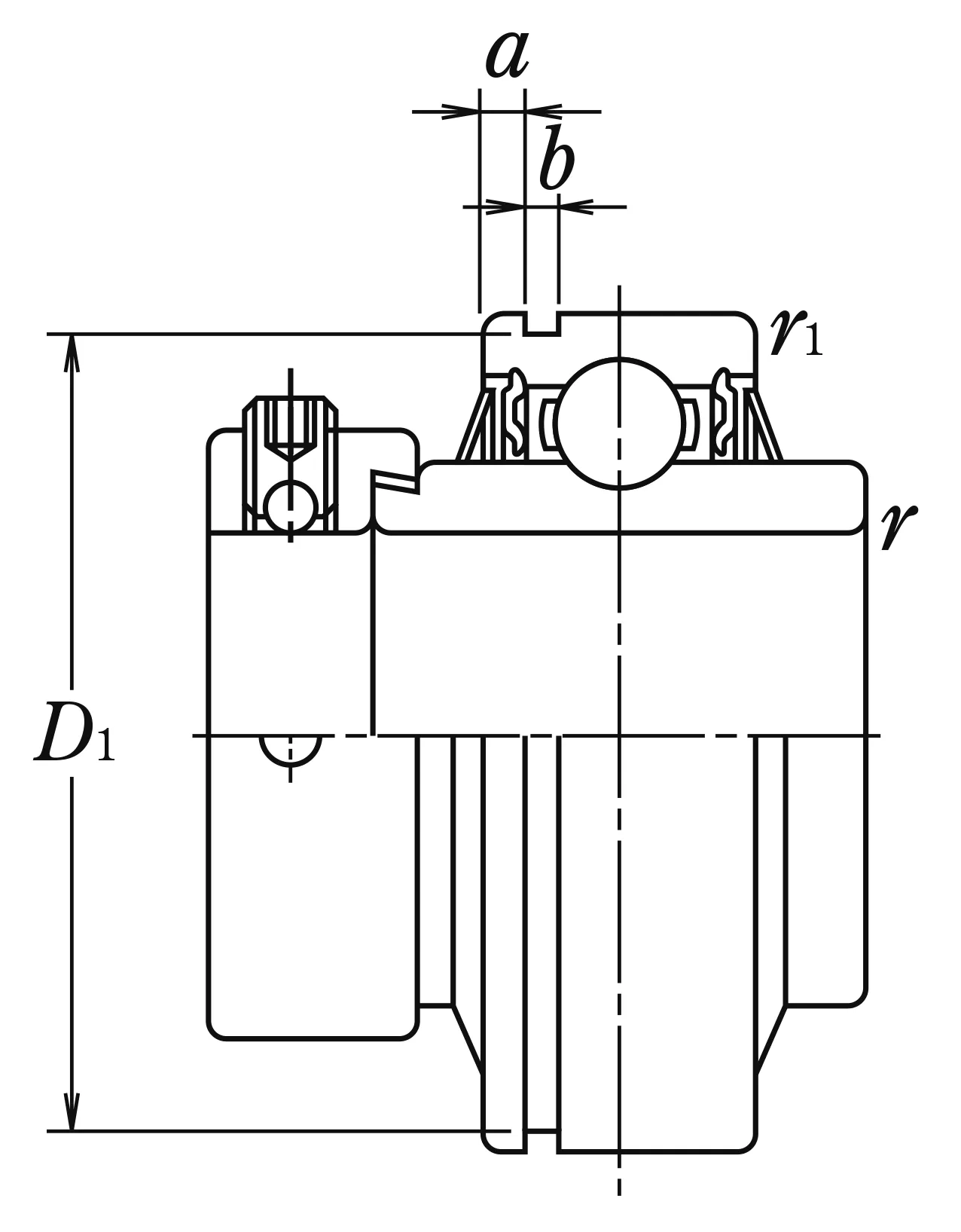

D1	68.81	mm	Diameter of snap ring groove
B5	17.5	mm	Width of locking collar
a	3.3	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

Mass approx.

0.6

kg

Mass approx.
