AEL207 Series-

Designations

AEL207

Included products

Bearing

AEL207

Bearing

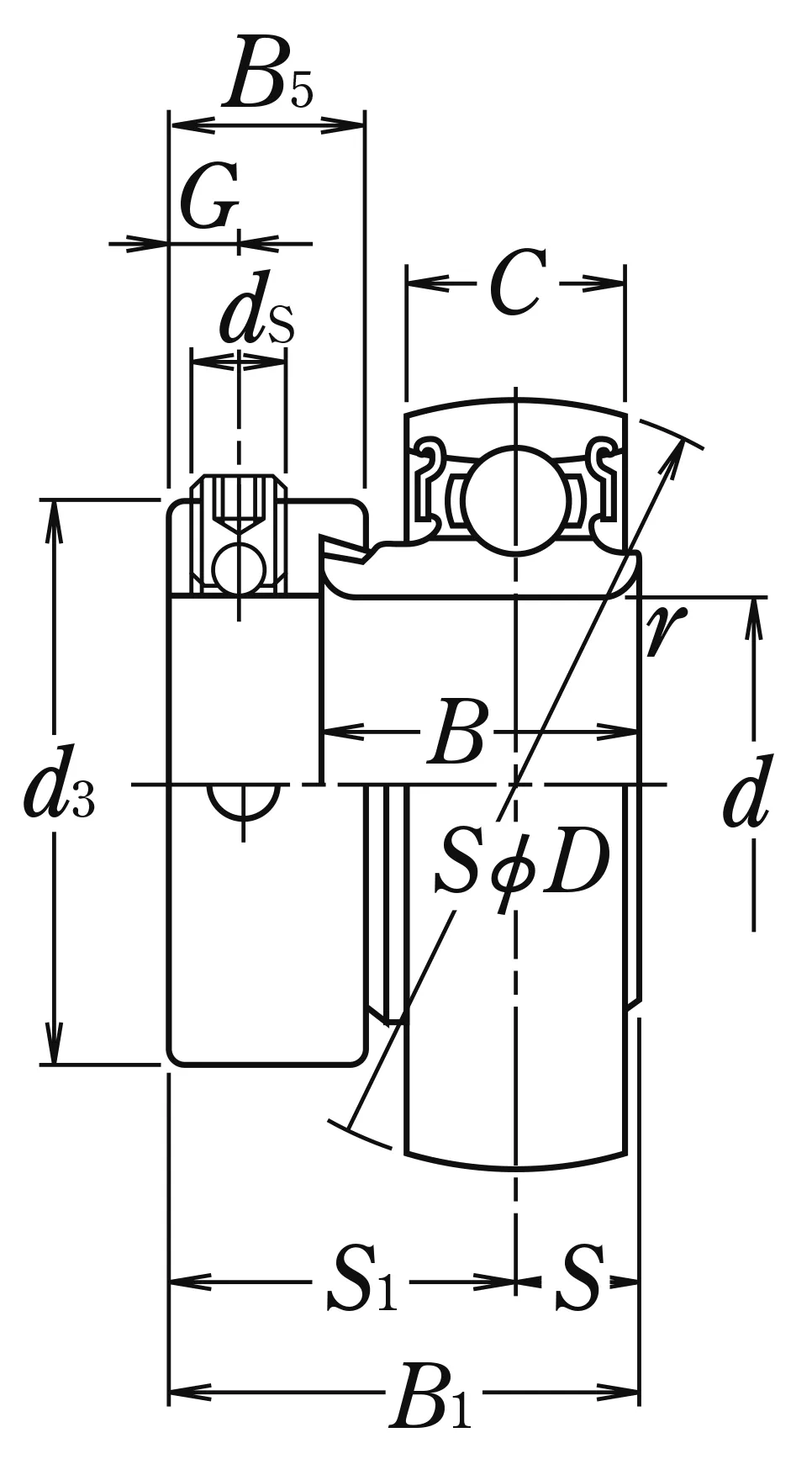

Nominal Dimensions

d	35	mm	Bore diameter
D	72	mm	Outside diameter
B1	38.9	mm	Overall bearing width
B,B4	25.4	mm	Width of inner ring
C	17	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
S1	29.4	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	55.5	mm	Outside diameter of locking collar
B5	17.5	mm	Width of locking collar

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

Mass approx.

0.5

kg

Mass approx.
