UCS306 Series-

Designations

UCS306

Included products

Bearing

UCS306

Bearing

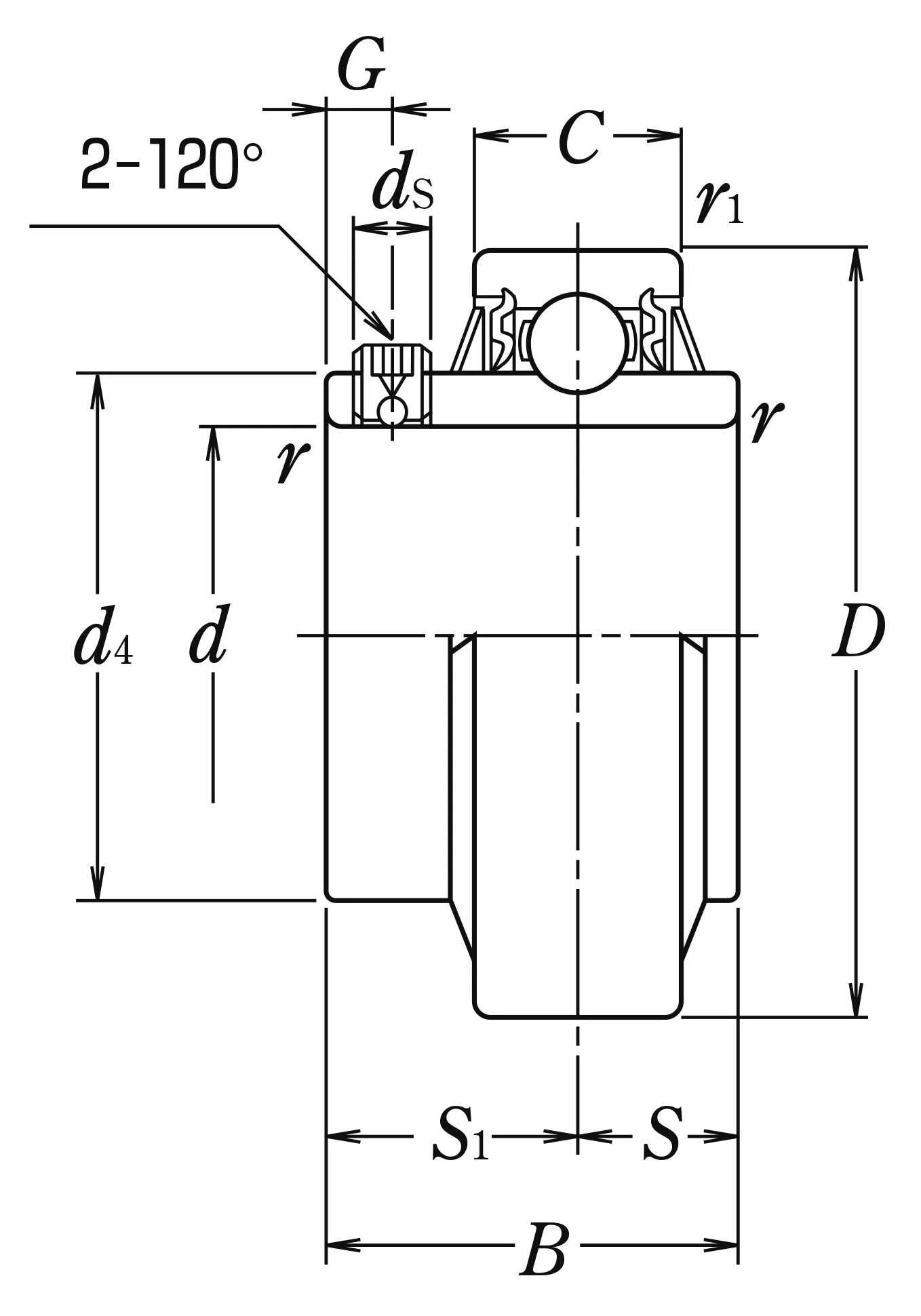

Nominal Dimensions

d	30	mm	Bore diameter
D	72	mm	Outside diameter
B,B4	43	mm	Width of inner ring
C	23	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	26	mm	Distance from locking device side face to raceway centre
G	6	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
d4	44.9	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

Mass approx.

0.58

kg
