UCS206LN Series-

Designations

UCS206LN

Included products

Bearing

UCS206LN

Bearing

Nominal Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B,B4	38.1	mm	Width of inner ring
C	19	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
r1(min.)	1	mm	Chamfer dimension
S1	22.2	mm	Distance from locking device side face to raceway centre
G	5	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
d4	40.8	mm	Outside diameter of inner ring

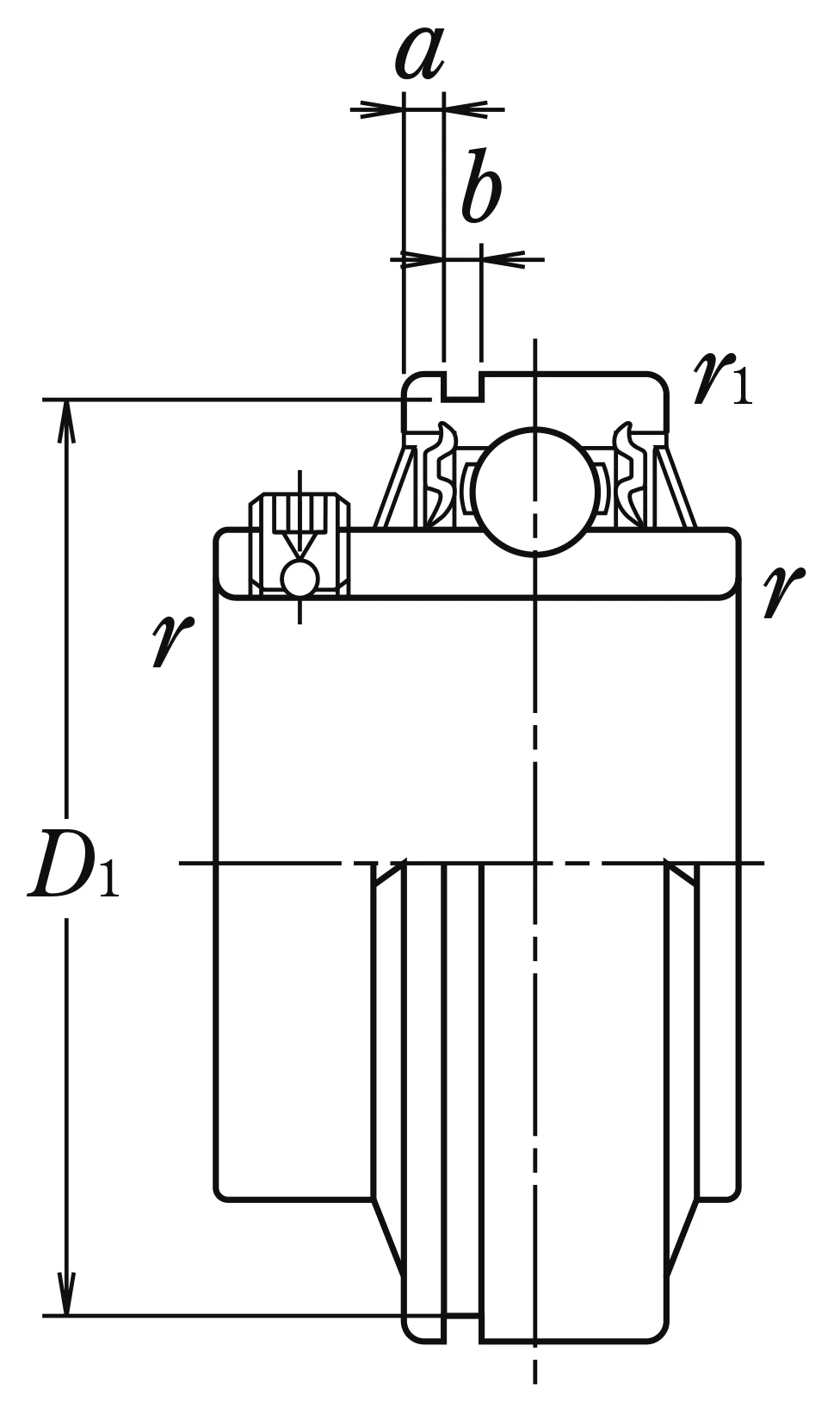

D1	59.61	mm	Diameter of snap ring groove
a	3.2	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

Mass approx.

0.34

kg

Mass approx.
