UELS305 Series-

Designations

UELS305

Included products

Bearing

UELS305

Bearing

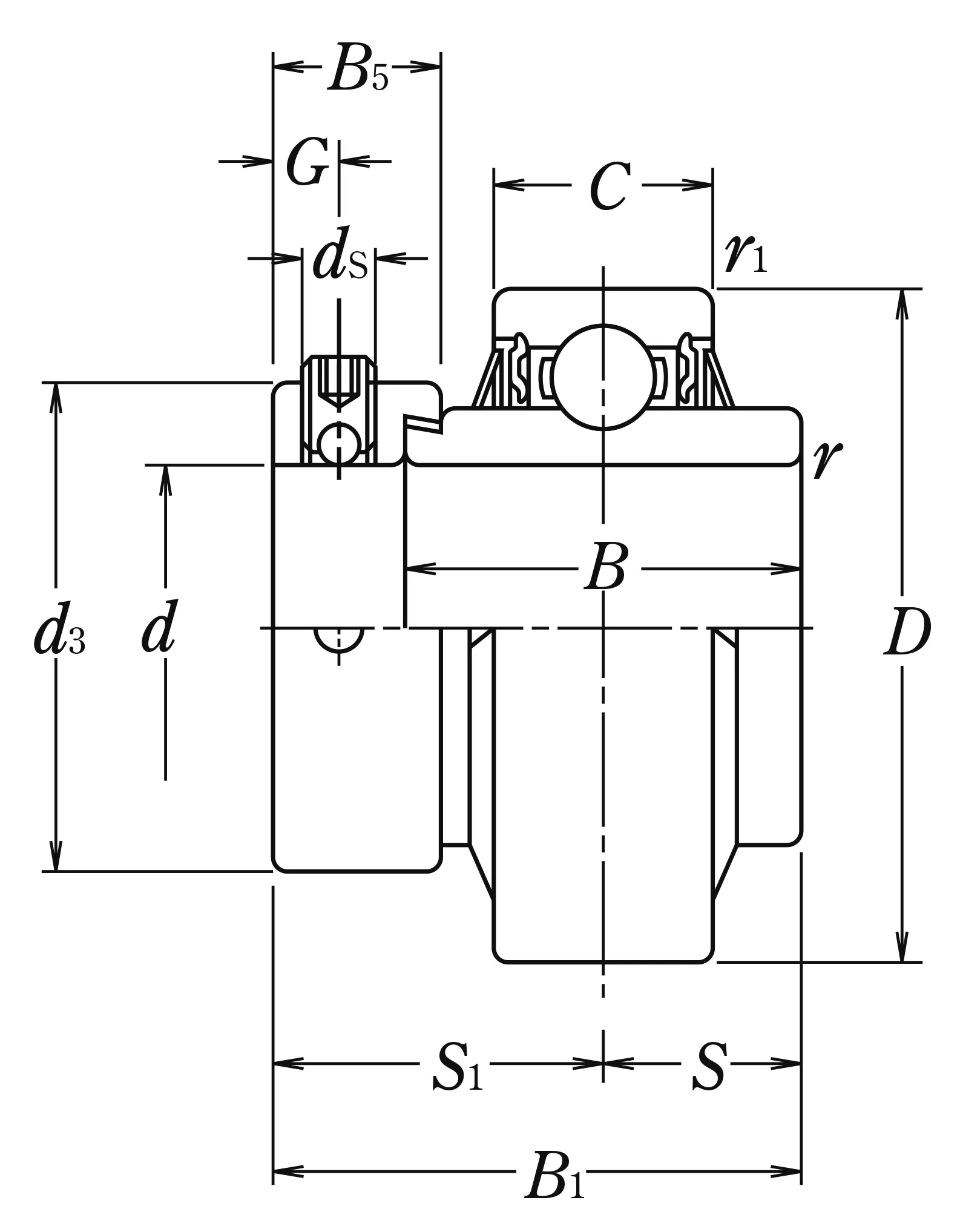

Nominal Dimensions

d	25	mm	Bore diameter
D	62	mm	Outside diameter
B1	46.8	mm	Overall bearing width
B,B4	34.9	mm	Width of inner ring
C	20	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	0.6	mm	Chamfer dimension
S1	30.1	mm	Distance from locking device side face to raceway centre
G	6	mm	Distance face to thread centre
ds	M 8×1		Set screw
d3	42.8	mm	Outside diameter of locking collar
B5	15.9	mm	Width of locking collar

Basic Load Ratings

Cr	21.2	kN	Basic dynamic load rating
C0r	10.9	kN	Basic static load rating

Mass

Mass approx.

0.45

kg

Mass approx.
