AS204 Series-

Designations

AS204

Included products

Bearing

AS204

Bearing

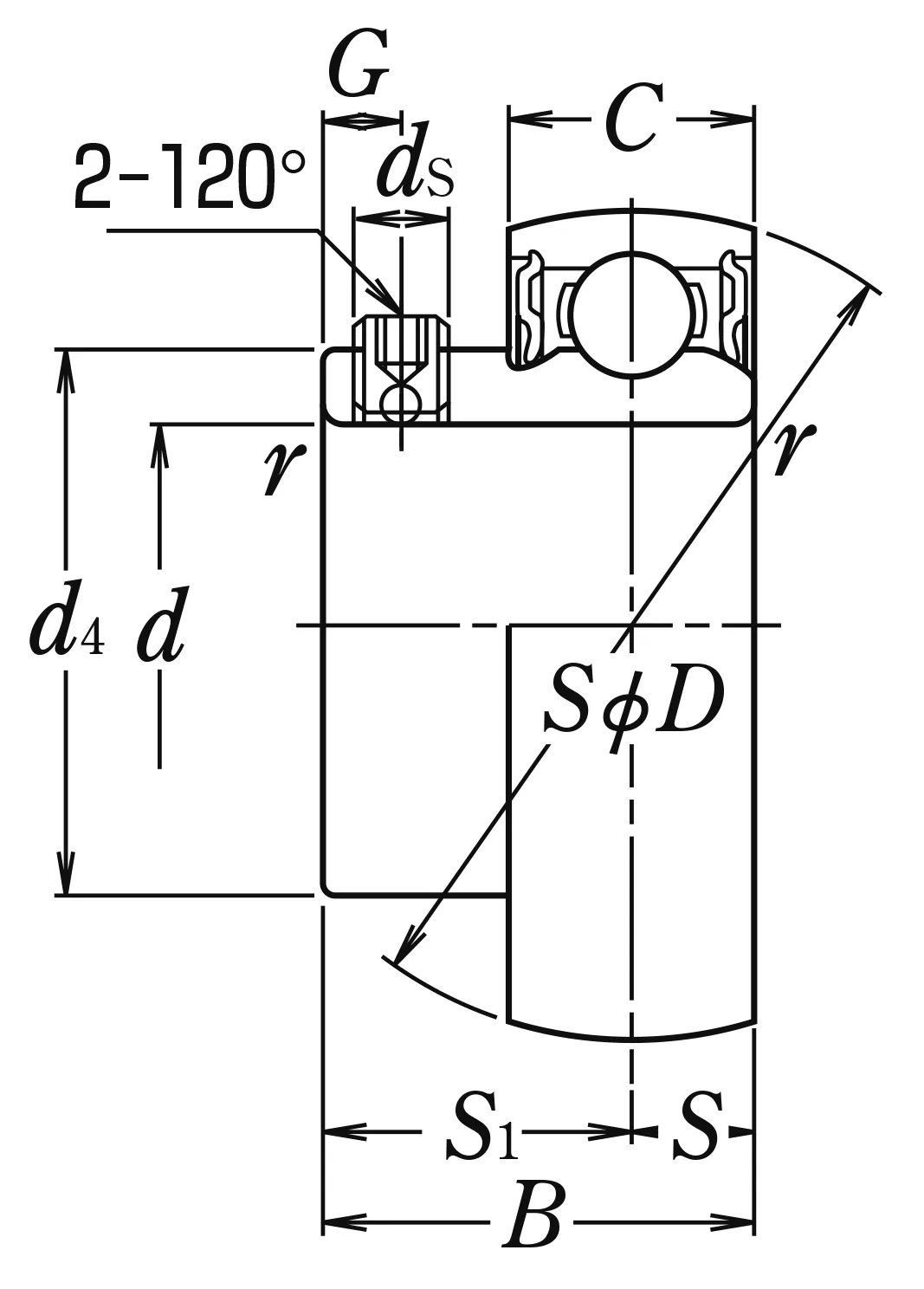

Nominal Dimensions

d	20	mm	Bore diameter
D	47	mm	Outside diameter
B,B4	25	mm	Width of inner ring
C	14	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	18	mm	Distance from locking device side face to raceway centre
G	4.2	mm	Distance face to thread centre
ds	M5×0.8		Set screw
d4	29.6	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

Mass approx.

0.13

kg

Mass approx.
