CS204LLU Series
CS204LLU Series

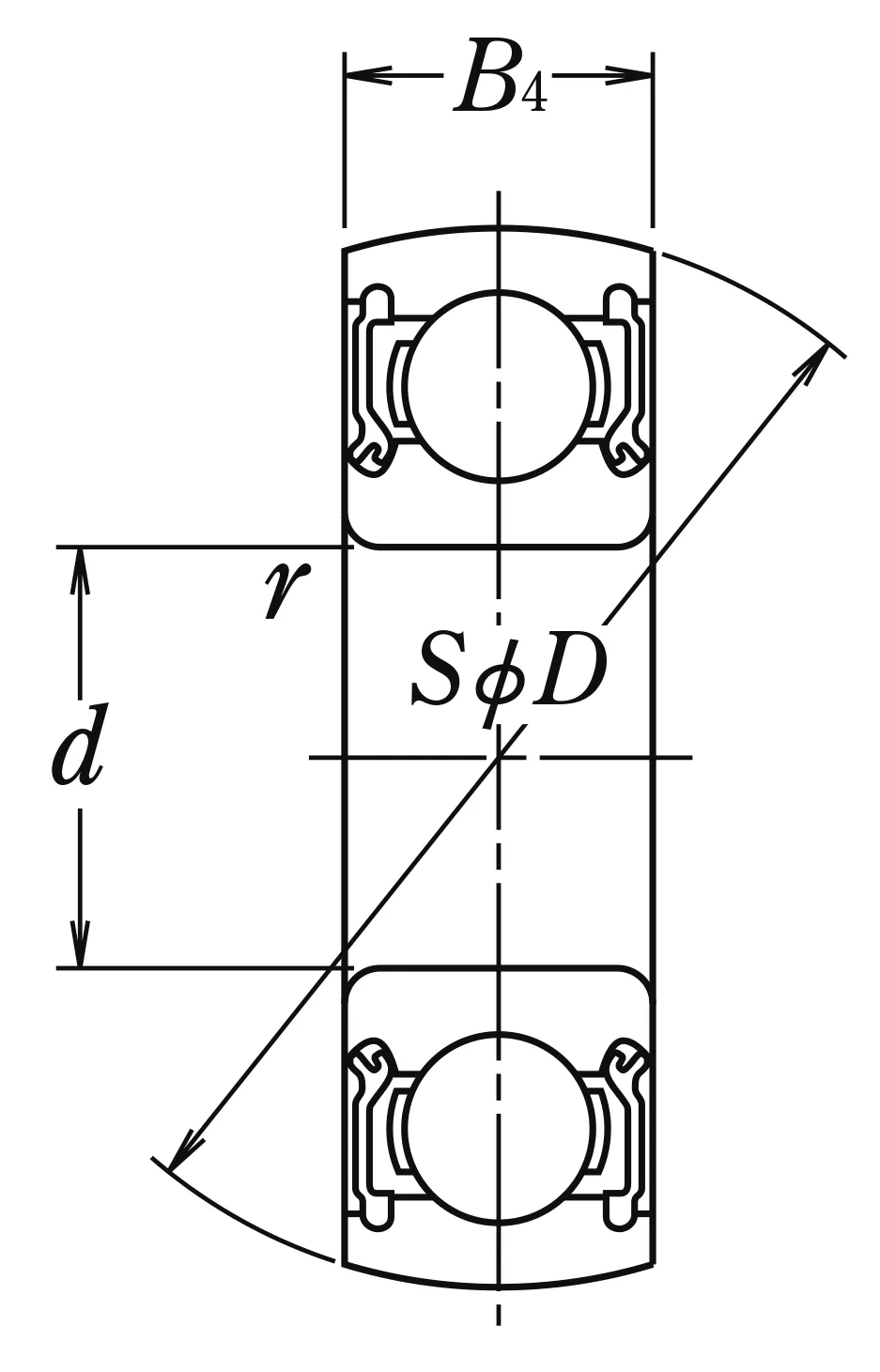

| CS204LLU |
| Bearing | CS204LLU | Bearing |
| d | 20 | mm | Bore diameter |
| D | 47 | mm | Outside diameter |
| B,B4 | 14 | mm | Width of inner ring |
| r(min.) | 1 | mm | Chamfer dimension |
| Cr | 12.8 | kN | Basic dynamic load rating |
| C0r | 6.65 | kN | Basic static load rating |
| Mass approx. | 0.1 | kg | Mass approx. |
