CS201LLU Series
CS201LLU Series

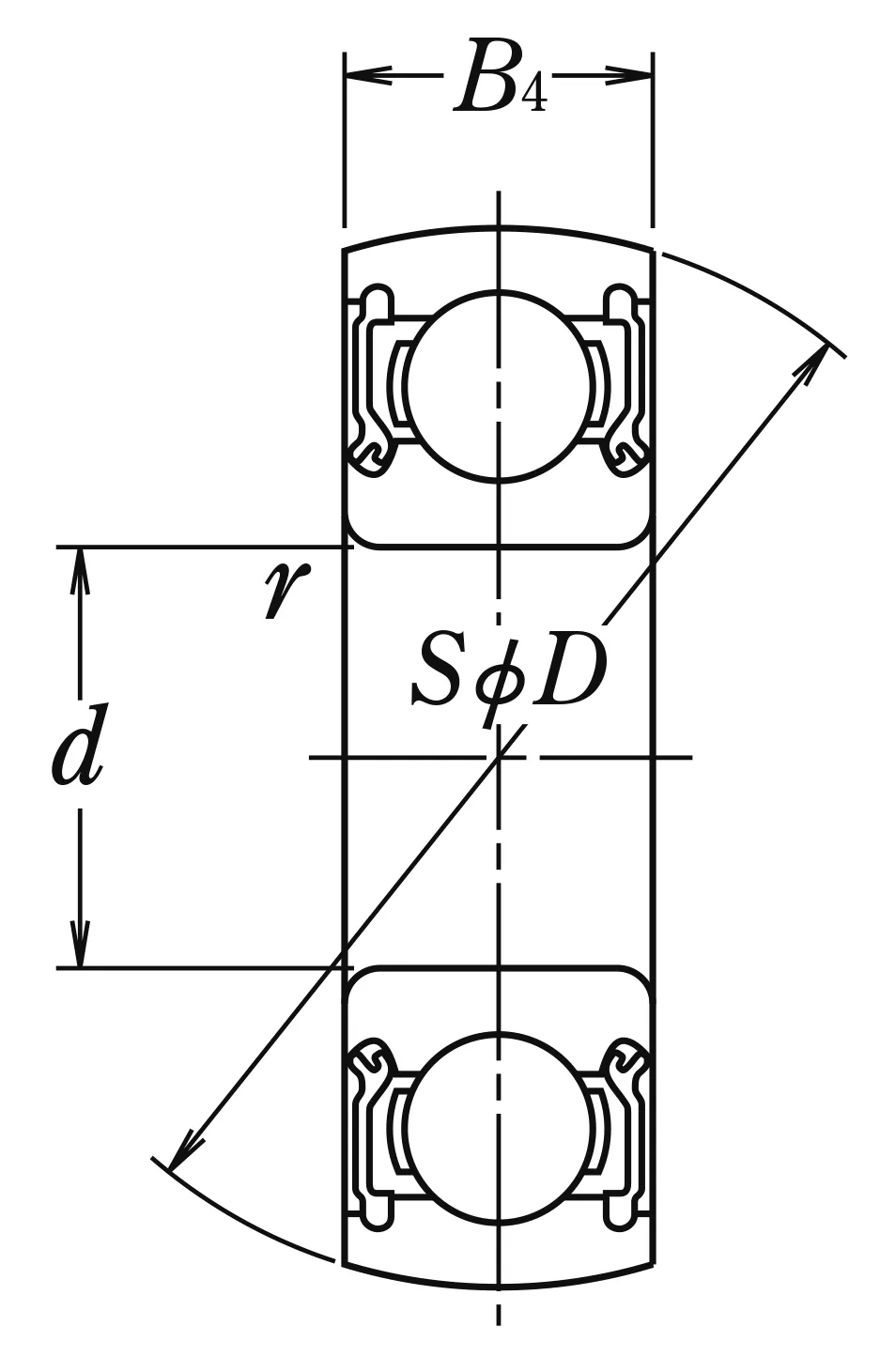

| CS201LLU |
| Bearing | CS201LLU | Bearing |
| d | 12 | mm | Bore diameter |
| D | 32 | mm | Outside diameter |
| B,B4 | 10 | mm | Width of inner ring |
| r(min.) | 0.6 | mm | Chamfer dimension |
| Cr | 6.1 | kN | Basic dynamic load rating |
| C0r | 2.75 | kN | Basic static load rating |
| Mass approx. | 0.04 | kg | Mass approx. |
