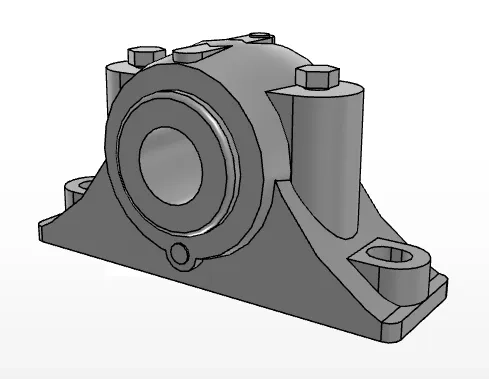

SN 305C 1
SN 305C 1

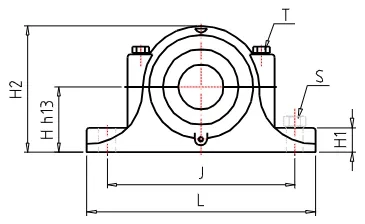

| Model | SN 305C 1 | |
|
D3 Shaft Diameter |
25 | mm |
|
PLB Plummer Block Bearing Box Numbers |
SN 305C | |
|
SBBN Self-Aligning Ball Bearing Numbers |
1305 | |
|
AN Spherical Roller Bearing - Numbers |
21305CD | |
|
NUT Nut Numbers |
AN 05 | |
|
WA Washer Numbers |
AW 05X | |
|
D1 Shaft Diameter |
30 | mm |
|
D2 Shaft Diameter |
20 | mm |
|
DH8 Diameter |
62 | mm |
|
HH13 Height |
50 | mm |
|
J Length |
150 | mm |
|
N Length |
15 | mm |
|
N1 Length |
20 | mm |
|
A Length |
80 | mm |
|
L Length |
185 | mm |
|
A1 Width |
52 | mm |
|
H1 Height |
22 | mm |
|
H2 Height |
90 | mm |
|
GH13 Length |
34 | mm |
|
T Nominal Diameter of Screw |
M8 | mm |
|
S Nominal Diameter of Screw |
M12 | mm |
|
MASS Mass-Approx |
1 | kg |
|
LRN Locating Rings Nominal (Outside Diameter x Width) |
SR 62x8,5 | |
|
OD Outside Diameter |
62 | mm |
|
W Width |
8.5 | mm |
|
Q Locating Rings Quantity |
2 | |
|
Y Length |
18 | mm |
|
OS1 Oil Seals Side D1 |
GS 7 | |
|
OS2 Oil Seals Side D2 |
GS 5 |
