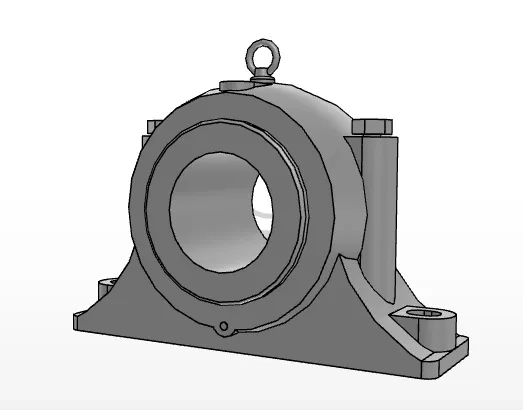

SN 528 1
SN 528 1

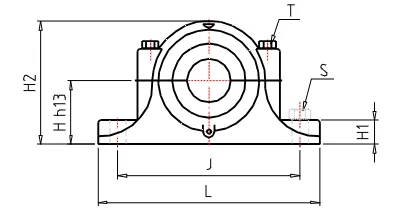

| Model | SN 528 1 | |
|
D1 Shaft Diameter |
125 | mm |
|
PLB Plummer Block Bearing Box Numbers |
SN 528 | |
|
AN Spherical Roller Bearing - Numbers |
22228CDK | |
|
AD Adapter-Numbers |
H3128 | |
|
DH8 Diameter |
250 | mm |
|
HH13 Height |
150 | mm |
|
J Length |
420 | mm |
|
A Width |
205 | mm |
|
L Length |
500 | mm |
|
A1 Width |
150 | mm |
|
H1 Height |
50 | mm |
|
H2 Height |
305 | mm |
|
GH13 Height |
98 | mm |
|
T Nominal Diameter of Screw |
M24 | mm |
|
N Length |
33 | mm |
|
N1 Length |
342 | mm |
|
S Nominal Diameter of Screw |
M30 | mm |
|
MASS Mass-Approx |
38 | kg |
|
LRN Locating Rings Nominal (Outside Diameter x Width) |
SR 250x15 | |
|
Q Locating Rings Quantity |
2 | |
|
Y Length |
60 | mm |
