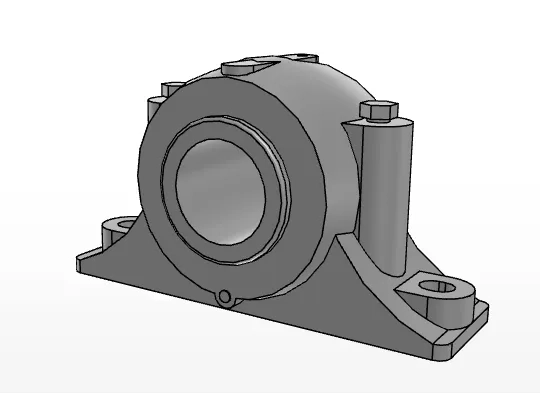

SN 516 1
SN 516 1
|

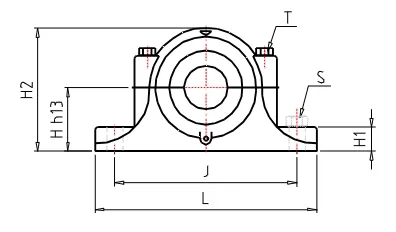

Model
|
SN 516 1 | ||
|
D1
Shaft Diameter |
70 | mm | |
|
PLB
Plummer Block Bearing Box Numbers |
SN 516 | ||
|
SBBN
Self-Aligning Ball Bearing Numbers |
1216K | ||
|
AN
Spherical Roller Bearing - Numbers |
- | ||
|
AD
Adapter-Numbers |
H216X | ||
|
DH8
Diameter |
140 | mm | |
|
HH13
Height |
95 | mm | |
|
J
Length |
260 | mm | |
|
A
Width |
120 | mm | |
|
L
Length |
315 | mm | |
|
A1
Width |
90 | mm | |
|
H1
Height |
32 | mm | |
|
H2
Height |
175 | mm | |
|
GH13
Height |
43 | mm | |
|
T
Nominal Diameter of Screw |
M16 | mm | |
|
N
Length |
22 | mm | |
|
N1
Length |
27 | mm | |
|
S
Nominal Diameter of Screw |
M20 | mm | |
|
MASS
Mass-Approx |
9 | kg | |
|
LRN
Locating Rings Nominal (Outside Diameter x Width) |
SR 140X8,5 | ||
|
Q
Locating Rings Quantity |
2 | mm | |
|
OS
Oil Seals |
GS 16 |
