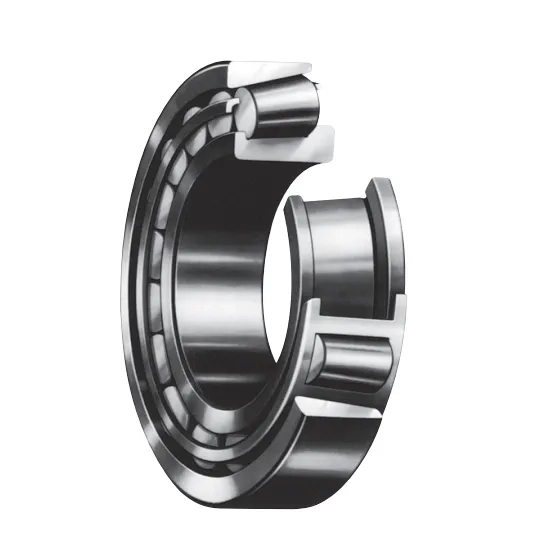

HR30204C-A-
HR30204C-A-
| ORDER Bearing No. |
HR30204C-A- | |
| SD Inside Diameter |
20 | mm |
| D Outside Diameter |
47 | mm |
| T Width |
15.25 | mm |
| B Width |
14 | mm |
| C Width |
12 | mm |
| R Chamfer Dimension |
0.3 | mm |
| R1 Chamfer Dimension |
1 | mm |
| CR1 Basic Dynamic Load Ratings |
23900 | N |
| COR1 Basic Static Load Ratings |
24000 | N |
| CR2 Basic Dynamic Load Ratings |
2430 | kgf |
| COR2 Basic Static Load Ratings |
2450 | kgf |
| LG Limiting Speed Grease |
8000 | rpm |
| LO Limiting Speed Oil |
11000 | rpm |
| ISO ISO355 Dimension Series approx. |
- | |
| DA1 Abutment and Fillet Dimensions min. |
24 | mm |
| DB1 Abutment and Fillet Dimensions max. |
26 | mm |
| DA2 Abutment and Fillet Dimensions max. |
41 | mm |
| DA3 Abutment and Fillet Dimensions min. |
37 | mm |
| DB2 Abutment and Fillet Dimensions min. |
44 | mm |
| SA Abutment and Fillet Dimensions min. |
2 | mm |
| SB Abutment and Fillet Dimensions min. |
3 | mm |
| RA Abutment and Fillet Dimensions min. |
0.3 | mm |
| RA1 Abutment and Fillet Dimensions max. |
1 | mm |
| A Eff. Load centers |
13 | mm |
| E Constant |
0.55 | |
| Y1 Axial load factors |
1.1 | |
| Y0 Axial load factors |
0.6 | |
| MASS Mass |
0.126 | kg |
