Time：2025-09-26
Edit：JFU Bearing

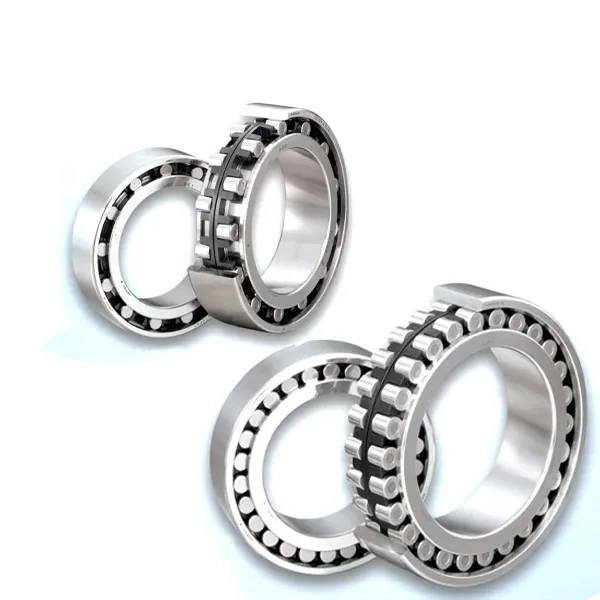

NNU4922K
NNU4922K
|
ORDER
Bearing No.
|
NNU4922K | |||
|
SD
Inside Diameter
|
110 | mm | ||
|
D
Outside Diameter
|
150 | mm | ||
|
B
Width
|
40 | mm | ||
|
R
Chamfer Dimension
|
1.1 | mm | ||
|
FW
Boundary Dimension
|
122 | mm | ||
|
CR1
Basic Dynamic Load Ratings
|
167000 | N | ||
|
COR1
Basic Static Load Ratings
|
335000 | N | ||
|
CR2
Basic Dynamic Load Ratings
|
17000 | kgf | ||
|
COR2
Basic Static Load Ratings
|
34000 | kgf | ||
|
LG
Limiting Speed Grease
|
3600 | rpm | ||
|
LO
Limiting Speed Oil
|
4500 | rpm | ||
|
DA1
Abutment and Fillet Dimensions min.
|
116.5 | mm | ||
|
DA2
Abutment and Fillet Dimensions max.
|
121 | mm | ||
|
D1A
Abutment and Fillet Dimensions min.
|
118 | mm | ||
|
DA3
Abutment and Fillet Dimensions min.
|
143.5 | mm | ||
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm | ||
|
MASS
Mass
|
2.07 | kg |
