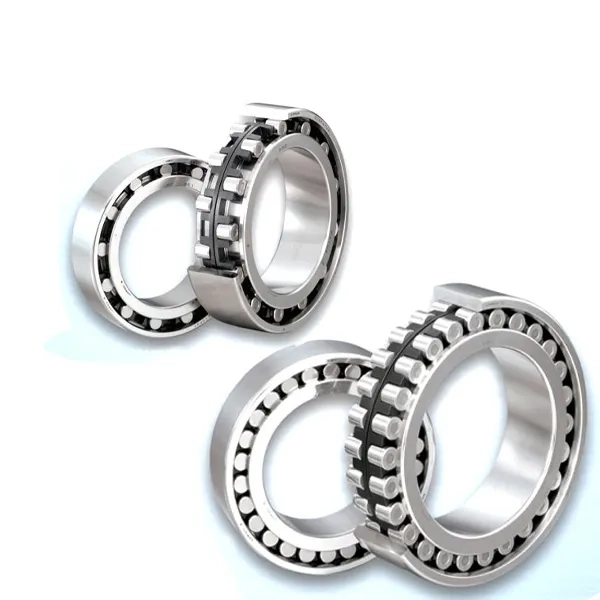

NN3014K
NN3014K
|
ORDER
Bearing No.
|
NN3014K | ||
|
SD
Inside Diameter
|
70 | mm | |
|
D
Outside Diameter
|
110 | mm | |
|
B
Width
|
30 | mm | |
|
R
Chamfer Dimension
|
1.1 | mm | |
|
EW
Boundary Dimension
|
100 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
97500 | N | |
|
COR1
Basic Static Load Ratings
|
148000 | N | |
|
CR2
Basic Dynamic Load Ratings
|
9950 | kgf | |
|
COR2
Basic Static Load Ratings
|
15100 | kgf | |
|
LG
Limiting Speed Grease
|
5600 | rpm | |
|
LO
Limiting Speed Oil
|
6700 | rpm | |
|
DA1
Abutment and Fillet Dimensions min.
|
76.5 | mm | |
|
D1A
Abutment and Fillet Dimensions min.
|
77 | mm | |
|
DA3
Abutment and Fillet Dimensions min.
|
103.5 | mm | |
|
DA4
Abutment and Fillet Dimensions max.
|
102 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm | |
|
MASS
Mass
|
1.07 | kg |
