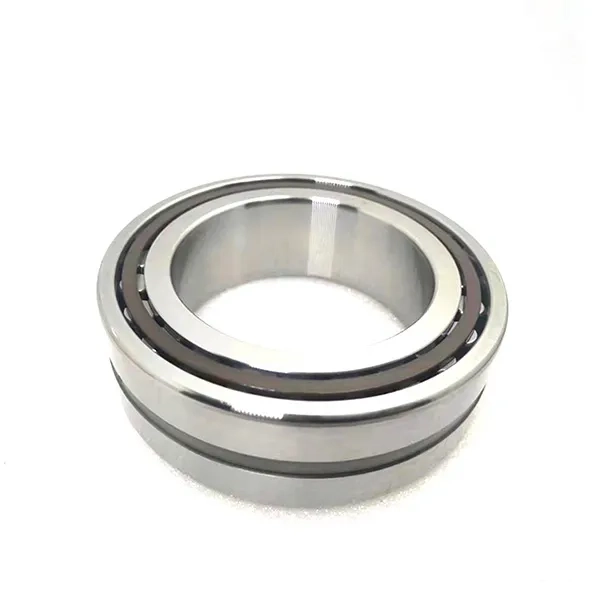

NN3017
NN3017
|
ORDER
Bearing No.
|
NN3017 | ||
|
SD
Inside Diameter
|
85 | mm | |
|
D
Outside Diameter
|
130 | mm | |
|
B
Width
|
34 | mm | |
|
R
Chamfer Dimension
|
1.1 | mm | |
|
EW
Boundary Dimension
|
118 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
125000 | N | |
|
COR1
Basic Static Load Ratings
|
201000 | N | |
|
CR2
Basic Dynamic Load Ratings
|
12800 | kgf | |
|
COR2
Basic Static Load Ratings
|
20500 | kgf | |
|
LG
Limiting Speed Grease
|
4500 | rpm | |
|
LO
Limiting Speed Oil
|
5600 | rpm | |
|
DA1
Abutment and Fillet Dimensions min.
|
91.5 | mm | |
|
D1A
Abutment and Fillet Dimensions min.
|
92 | mm | |
|
DA3
Abutment and Fillet Dimensions min.
|
123.5 | mm | |
|
DA4
Abutment and Fillet Dimensions max.
|
120 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm | |
|
MASS
Mass
|
1.63 | kg |
