Time：2025-09-26
Edit：JFU Bearing
NF204
NF204
|
ORDER

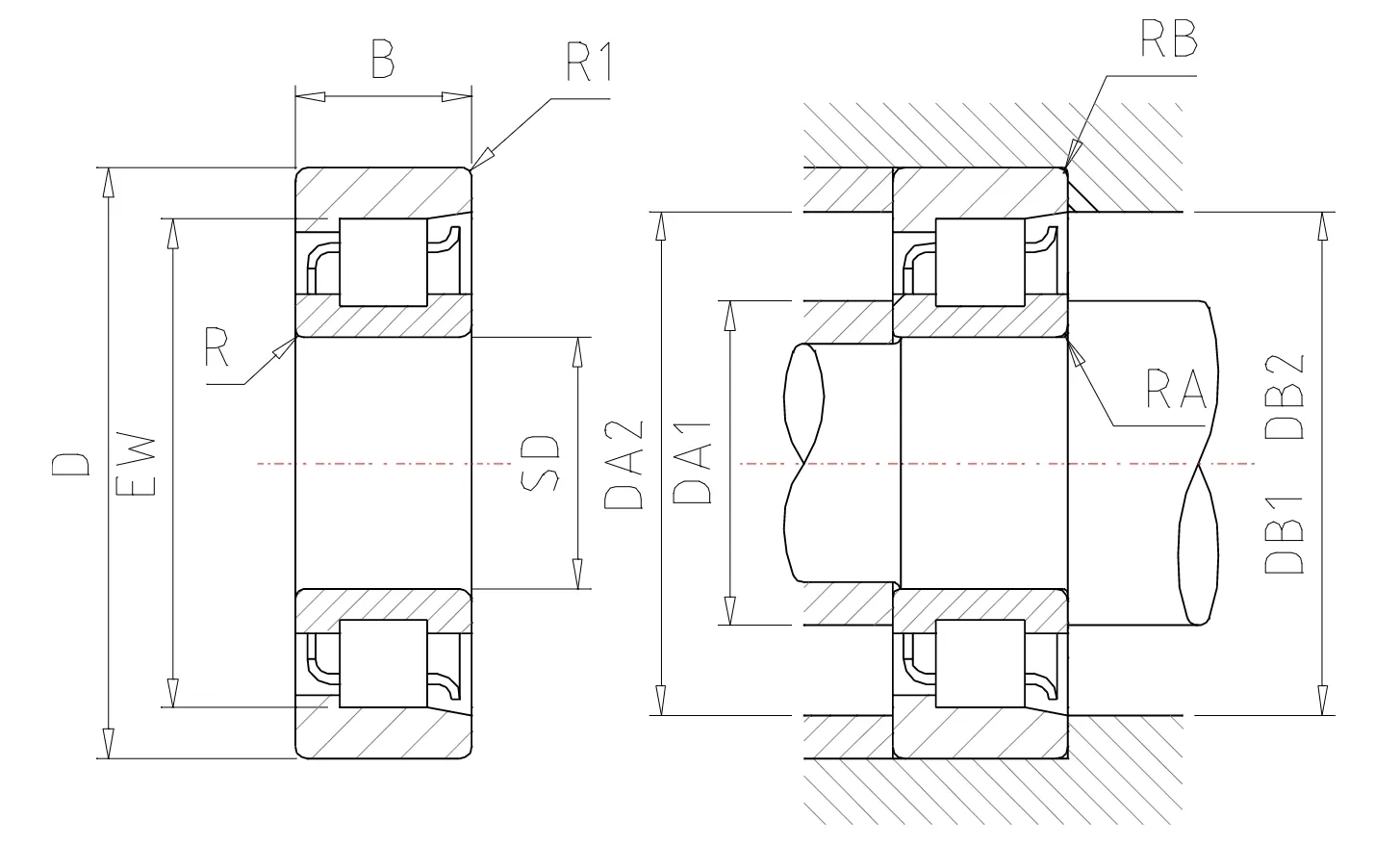

Bearing No.
|
NF204 | ||
|
SD
Inside Diameter
|
20 | mm | |
|
D
Outside Diameter
|
47 | mm | |
|
B
Width
|
14 | mm | |
|
R
Chamfer Dimension
|
1 | mm | |
|
R1
Chamfer Dimension
|
0.6 | mm | |
|
EW
Boundary Dimension
|
40 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
15400 | N | |
|
COR1
Basic Static Load Ratings
|
12700 | N | |
|
CR2
Basic Dynamic Load Ratings
|
1570 | kgf | |
|
COR2
Basic Static Load Ratings
|
1290 | kgf | |
|
LG
Limiting Speed Grease
|
15000 | rpm | |
|
LO
Limiting Speed Oil
|
18000 | rpm | |
|
DA1
Abutment and Fillet Dimensions min.
|
25 | mm | |
|
DA2
Abutment and Fillet Dimensions max.
|
42 | mm | |
|
DB1
Abutment and Fillet Dimensions max.
|
43 | mm | |
|
DB2
Abutment and Fillet Dimensions min.
|
41 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm | |
|
RB
Abutment and Fillet Dimensions max.
|
0.6 | mm | |
|
MASS
Mass
|
0.11 | kg |
