6301
6301
|
Company
|
JFU Rolling Bearing | |
|
Description
|
Single-Row Open-Type Deep Groove Ball Bearing | |
|
ORDER
Bearing No.
|
6301 | |
|

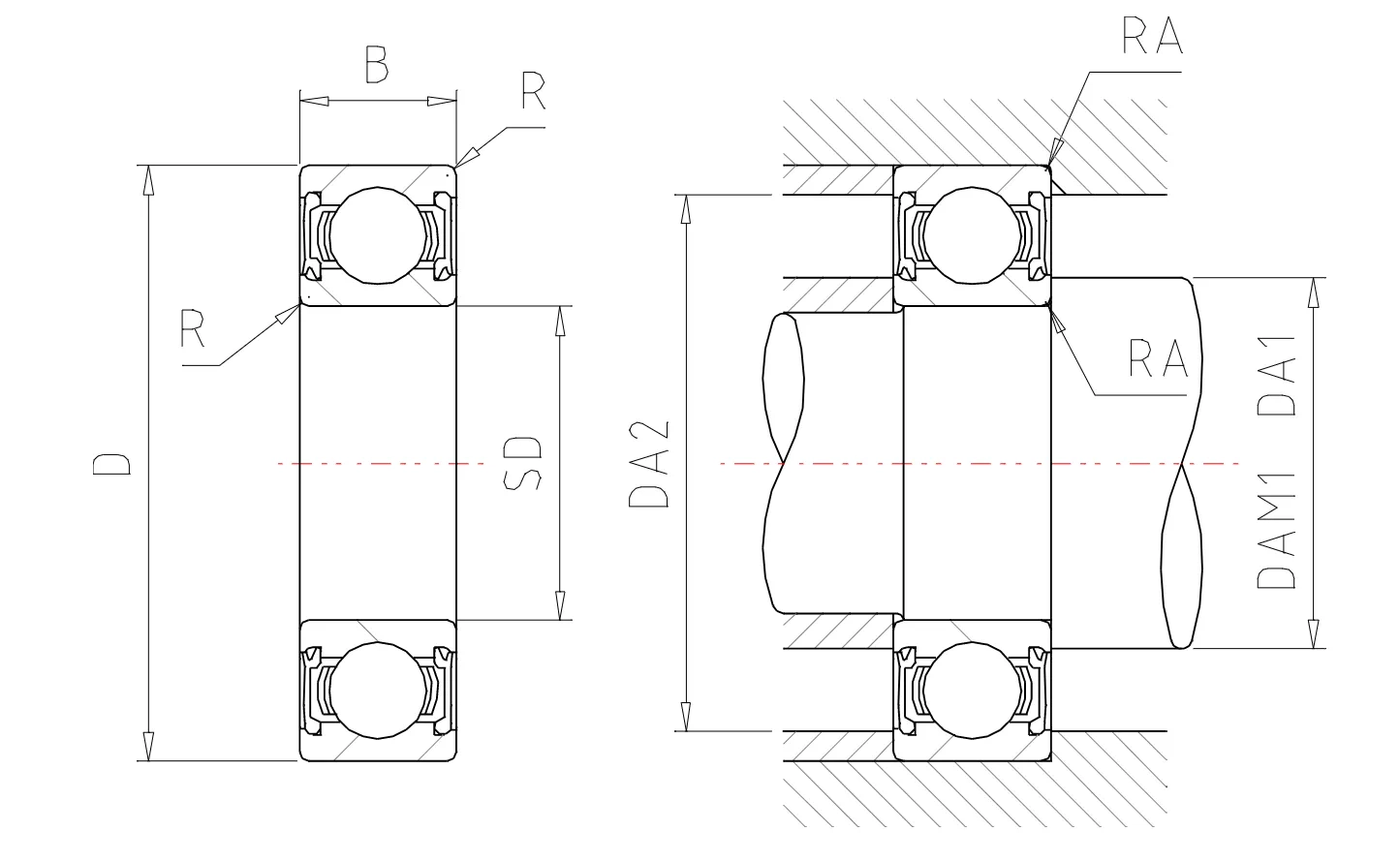

SD
Inside Diameter
|
12 | mm |
|
D
Outside Diameter
|
37 | mm |
|
B
Width
|
12 | mm |
|
R
Chamfer Dimension
|
1 | mm |
|
CR1
Basic Dynamic Load
|
9700 | N |
|
COR1
Basic Static Load Ratings
|
4200 | N |
|
FO
Factor
|
11.1 | |
|
LG
Limiting Speed Grease
|
20000 | rpm |
|
LO
Limiting Speed Oil
|
24000 | rpm |
|
DAM1
Abutment and Fillet Dimensions min.
|
17 | mm |
|
DA1
Abutment and Fillet Dimensions max.
|
18 | mm |
|
DA2
Abutment and Fillet Dimensions max.
|
32 | mm |
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm |
|
MASS
Mass
|
0.06 | kg |
