Time：2025-09-28
Edit：JFU Bearing
V400C250-0 2
V400C250-0 2
|

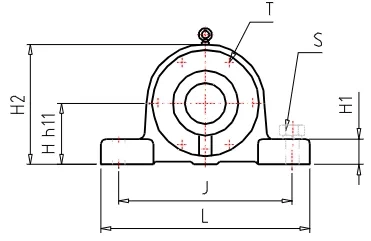

Model
|
V400C250-0 2 | |||
|
D3
Shaft Diameter
|
220 | mm | ||
|
PLB
Order number
|
V400C250-0 | |||
|
SBBN
Bearing-Ball
|
23244C | |||
|
AN
Bearing-Roller
|
AN44 | |||
|
NN
Nut Numbers
|
AL 44 | |||
|
WN
Washer Numbers
|
250 | |||
|
D1
Shaft Diameter
|
0 | mm | ||
|
D2
Shaft Diameter
|
680 | mm | ||
|
DH7
Diameter
|
400 | mm | ||
|
HH11
Height
|
250 | mm | ||
|
J
Length
|
330 | mm | ||
|
A
Length
|
820 | mm | ||
|
L
Length
|
250 | mm | ||
|
A1
Width
|
151 | mm | ||
|
A3
Length
|
95 | mm | ||
|
H1
Height
|
500 | mm | ||
|
H2
Height
|
154 | mm | ||
|
G
Length
|
M14 | mm | ||
|
T
Nominal Diameter of Screw
|
36 | mm | ||
|
N
Length
|
60 | mm | ||
|
N1
Length
|
148 | mm | ||
|
S
Nominal Diameter of Screw
|
M30 | mm | ||
|
MASS
Mass-Approx
|
230 | kg | ||
|
LRN
Locating Rings Nominal (Outside Diameter x Width)
|
M20 | |||
|
Q
Locating Rings Quantity
|
SR 400x10 | |||
|
Y
Length
|
1 | mm | ||
|
OS1
Oil Seals
|
108 | |||
|
OS2
Oil Seals
|
GS 54 |
