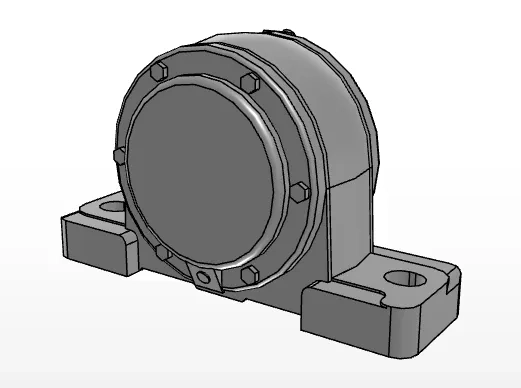

V120C75-60 1
V120C75-60 1
|
Model
|
V120C75-60 1 | |||
|
D3
Shaft Diameter
|
65 | mm | ||
|
PLB
Order number
|
V120C75-60 | |||
|
SBBN
Bearing-Ball
|
AW13X | |||
|
AN
Bearing-Roller
|
2213 | |||
|
NN
Nut Numbers
|
22213EAE4 | |||
|
WN
Washer Numbers
|
AN13 | |||
|
D1
Shaft Diameter
|
75 | mm | ||
|
D2
Shaft Diameter
|
60 | mm | ||
|
DH7
Diameter
|
120 | mm | ||
|
HH11
Height
|
85 | mm | ||
|
J
Length
|
230 | mm | ||
|
A
Length
|
118 | mm | ||
|
L
Length
|
275 | mm | ||
|
A1
Width
|
80 | mm | ||
|
A3
Length
|
0 | mm | ||
|
H1
Height
|
30 | mm | ||
|
H2
Height
|
165 | mm | ||
|
G
Length
|
49 | mm | ||
|
T
Nominal Diameter of Screw
|
M6 | mm | ||
|
N
Length
|
21 | mm | ||
|
N1
Length
|
25 | mm | ||
|
S
Nominal Diameter of Screw
|
M18 | mm | ||
|
MASS
Mass-Approx
|
9 | kg | ||
|
LRN
Locating Rings Nominal (Outside Diameter x Width)
|
SR 120x9 | |||
|
Q
Locating Rings Quantity
|
2 | |||
|
Y
Length
|
0 | mm | ||
|
OS1
Oil Seals
|
GS 17 | |||
|
OS2
Oil Seals
|
GS 13 |
