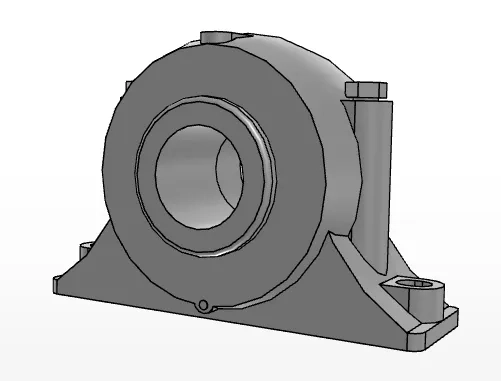

SN 319C
SN 319C
| Model | SN 319C | |
|
D3 Shaft Diameter |
95 | mm |
|
PLB Plummer Block Bearing Box Numbers |
SN 319C | |
|
SBBN Self-Aligning Ball Bearing Numbers |
2319 | |
|
AN Spherical Roller Bearing - Numbers |
22319EAE4 | |
|
NUT Nut Numbers |
AN 19 | |
|
WA Washer Numbers |
AW 19X | |
|
D1 Shaft Diameter |
110 | mm |
|
D2 Shaft Diameter |
90 | mm |
|
DH8 Diameter |
200 | mm |
|

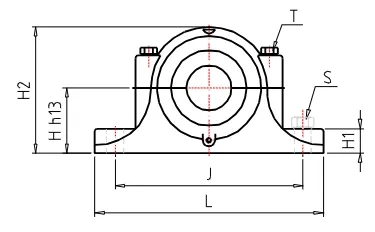

HH13 Height |
125 | mm |
|
J Length |
350 | mm |
|
N Length |
26 | mm |
|
N1 Length |
32 | mm |
|
A Length |
170 | mm |
|
L Length |
410 | mm |
|
A1 Width |
120 | mm |
|
H1 Height |
45 | mm |
|
H2 Height |
245 | mm |
|
GH13 Length |
77 | mm |
|
T Nominal Diameter of Screw |
M20 | mm |
|
S Nominal Diameter of Screw |
M24 | mm |
|
MASS Mass-Approx |
22 | kg |
|
LRN Locating Rings Nominal (Outside Diameter x Width) |
SR 200x10 | |
|
OD Outside Diameter |
200 | mm |
|
W Width |
10 | mm |
|
Q Locating Rings Quantity |
1 | |
|
Y Length |
55 | mm |
|
OS1 Oil Seals Side D1 |
GS 24 | |
|
OS2 Oil Seals Side D2 |
GS 20 |
